High Efficient Automatic Board Feeding Machine with PLC Control

High Efficient Automatic Board Feeding Machine with PLC Control

Brand Name:	LV-fm
Model Number:	FM-1300
MOQ:	1 set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 set/ year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

Feature:

Artistic Ceilings

Function::

Fireproof, Heat Insulation, Moisture-Proof

Ceiling Tile Type:

PVC Ceilings

Dimension(L*W*H):

12600*1950*1600mm

Voltage:

380V

Stroke:

1500mm

Packaging Details:

standard package

Supply Ability:

10 set/ year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

High Efficient Automatic Board Feeding Machine with PLC Control

Product Specifications

Feature	Artistic Ceilings
Function	Fireproof, Heat Insulation, Moisture-Proof
Ceiling Tile Type	PVC Ceilings
Dimension (L×W×H)	12600×1950×1600mm
Voltage	380V
Stroke	1500mm

Product Description

This Automatic Board Feeding Machine with PLC Control offers high efficiency operation for ceiling board production, combining multiple processing functions in one integrated system.

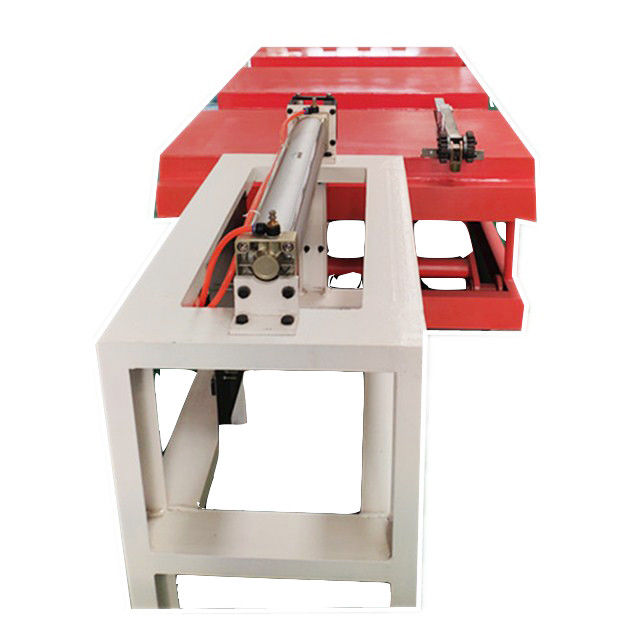

1. Automatic Gypsum Board Feeding Machine

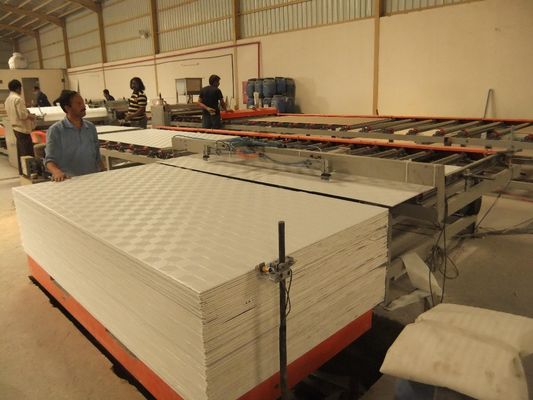

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll, ready for PVC and aluminum film lamination.

Max. Load-bearing	3000kg
Stroke	1500mm
Min. Height	620mm
Max. Height	2000mm
Platform size	1200×2400mm

2. Double Sided Laminating Machine

Effective lamination width: ≤ 1300mm
Thickness of sheet: 5-30mm
Lamination speed: 3-15m/min
Board feeding and releasing mode: automatic

3. Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collector system. Cuts 1.2×2.4m boards into 603×603mm or 595×595mm sizes.

Cutting speed: 15m/min
Cutting knives: 3 vertical/longitudinal blades, 5 horizontal blades
Overall power: 17.15KW

4. Automatic Edge Sealing Machine

PLC controlled for high speed and output
Sheet size: 600×600mm
Production speed: 25 pieces/min
Installed power: 5 KW

5. Automatic Thermoplastic Packing Machine

Creates tight, smooth packages for PVC gypsum board products
Electric source: 380V
Power: 23KW
Speed: 500 packs/hour
Standard packing temperature: 160-180℃
Package material: PE heat shrinking film

Our Service Commitment

Professional installation & debug teams available for on-site setup and testing
Year-round supply of accessories with 1-year equipment guarantee
Continuous technical consultation and problem-solving support
Assistance with consignment and import/export procedures
Production engineers available for machine operation support and long-term cooperation
