Gypsum Ceiling Tile Production Line
Created with Pixso.

Automatic PVC Gypsum Ceiling Tile Make Machine In Construction For Decorative

Name

Automatic PVC Gypsum Ceiling Tile Make Machine In Construction For Decorative

Brand Name: LVJOE
Model Number: LV-JB01
MOQ: 1 set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei, China
Certification:
CE ISO
Application Boaard Size:
603*603 595*595mm
Speed:
15m/min
Power:
17.15KW
Suitable Board:
Gypsum Board
Electric Source:
380V
Dust Collector:
Dust Exhausting
Packaging Details:
standard package
Supply Ability:
10 lines per year
Highlight:

gypsum board feeding machine

,

gypsum board hurting machine

Product Description

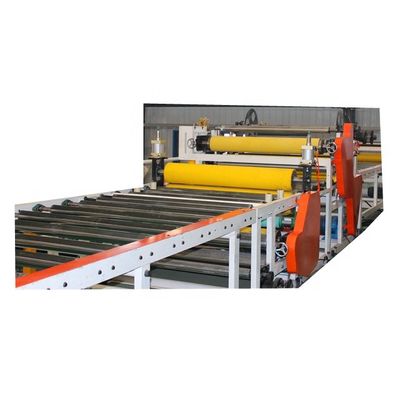

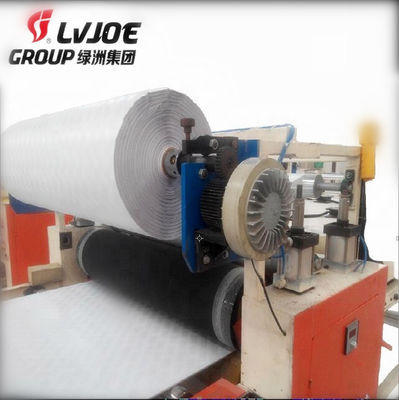

Automatic PVC Gypsum Ceiling Tile Make Machine

A high-performance construction machine designed for precision cutting of decorative ceiling tiles with integrated dust collection system.

Key Specifications
Attribute Value
Application Board Size 603×603 mm / 595×595 mm
Speed 15 m/min
Power 17.15 KW
Suitable Board Gypsum board
Electric Source 380V
Dust Collector Dust exhausting system
Production Features
  • Dual cutting system: vertical/longitudinal and horizontal cutting
  • Integrated electronic impulse dust collector for efficient dust recycling
  • Converts 1.2×2.4m boards to 603×603mm/595×595mm tiles
  • Cutting configuration: 3 vertical blades and 5 horizontal blades
Material Specifications
Parameter Value
Effective laminating width 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-4 million Sq.m
PVC Gypsum Ceiling Tile Characteristics

Made of paper-faced gypsum board with PVC surface layer and aluminum foil backing. Features include:

  • Environmentally friendly and lightweight construction
  • Fireproof, waterproof, and corrosion-resistant
  • Easy to clean with customizable patterns
  • Ideal for high-demand environments: hotels, restaurants, shopping malls, theaters, offices, and residential spaces
Comprehensive Support Services
  • Professional installation and debugging teams available
  • One-year equipment warranty with year-round spare parts supply
  • Continuous technical support and problem resolution
  • Assistance with import/export procedures and consignment
  • Long-term cooperation with production engineering support
