PVC Gypsum Ceiling Tile Make Machine in Construction by Automaic

PVC Gypsum Ceiling Tile Make Machine in Construction by Automaic

Brand Name:	LVJOE
Model Number:	LV-JB01
MOQ:	1 set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

CE ISO

Application Boaard Size:

603*603 595*595mm

Speed:

15m/min

Power:

17.15KW

Suitable Board:

Gypsum Board

Electric Source:

380V

Dust Collector:

Dust Exhausting

Packaging Details:

standard package

Supply Ability:

10 lines per year

Highlight:

gypsum board feeding machine

gypsum board hurting machine

Product Description

PVC Gypsum Ceiling Tile Make Machine in Construction by Automatic

Product Specifications

Application Board Size	603×603 mm / 595×595 mm
Speed	15 m/min
Power	17.15 KW
Suitable Board	Gypsum board
Electric Source	380V
Dust Collector	Dust exhausting system

Production Overview

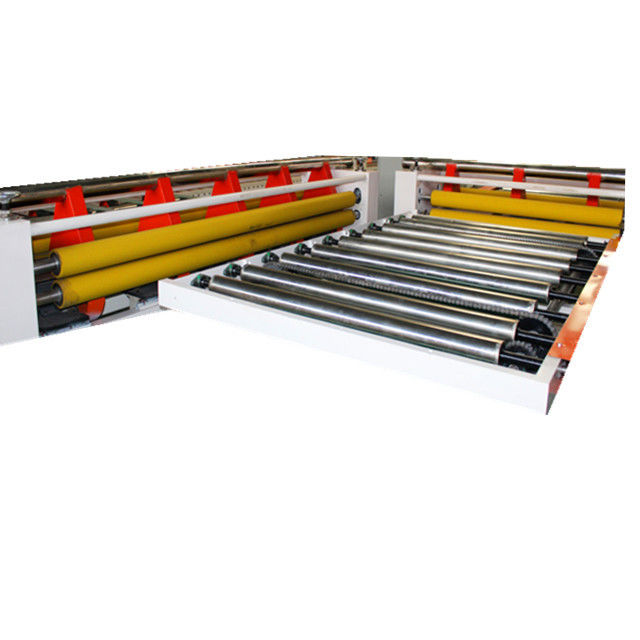

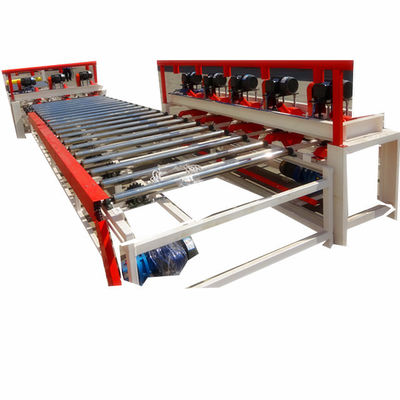

This automatic ceiling tile production equipment features dual cutting systems (vertical/longitudinal and horizontal cutting) with an integrated dust collector system for efficient operation.

Key Features

Precisely cuts decorative film-covered plasterboard to specified dimensions (603×603mm or 595×595mm)
Electronic impulse dust collector efficiently recycles cutting dust
Converts 1.2×2.4m boards into smaller ceiling tiles
Cutting configuration: 3 vertical/longitudinal blades and 5 horizontal blades

Application Board Details

PVC gypsum ceiling tiles are environmentally friendly decorative boards featuring:

Paper-faced gypsum board with PVC surface layer
Aluminum foil backing
Lightweight yet fireproof and waterproof
Corrosion-resistant and easy to clean
Customizable patterns available

Ideal for high-performance environments including hotels, shopping malls, offices, and industrial spaces requiring fireproof and waterproof ceiling solutions.

Technical Parameters

Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-4 million Sq.m
Compatible Materials	PVC film, aluminum foils, decorative materials, gypsum board, wood board, PVC foam board

Comprehensive Service Support

Professional installation and debugging teams ensure proper setup at your facility
One-year equipment warranty with year-round spare parts availability
Continuous technical support and problem resolution
Assistance with import/export procedures and consignment
Production engineers available for operational support when needed
