products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fully Automatic Lamination Machine
Created with Pixso.

PVC 595*595 And 603*603 Automatic And Efficient Gypsum Board Lamination Machine

Name

PVC 595*595 And 603*603 Automatic And Efficient Gypsum Board Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM01
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C,T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Driven Type:
PLC System
Voltage:
380V
Dimension(L*W*H):
12600*1950*1600
Warranty:
1 Year
Weight:
3-30t
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

full automatic shrink wrapping machine

,

automatic packing machine

Product Description
PVC 595×595 And 603×603 Automatic And Efficient Gypsum Board Lamination Machine
Product Specifications
Driven Type
PLC System
Voltage
380V
Dimensions (L×W×H)
12600×1950×1600 mm
Features
Easy To Operate
Warranty
1 Year
Weight
3-30t
Product Overview

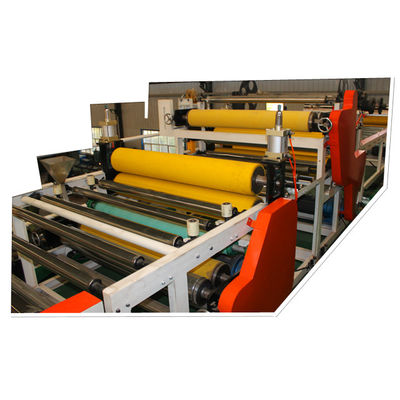

The Gypsum Board PVC Laminating Machine laminates PVC film and aluminum film on both sides of paper gypsum board, creating panels with superior properties including:

  • High waterproof and moisture resistance
  • Flame and heat resistance
  • Excellent thermal insulation
  • Radiation protection
  • Anti-sagging and deformation resistance

These durable, non-toxic panels help regulate indoor temperatures while maintaining human health, making them ideal green construction materials for public spaces like shopping malls and stations.

Technical Specifications
Max sheet width 1300mm
Max sheet speed 2-15m/min
Thickness range 2-50mm
Power 4.5kw
Power supply 380V, 50Hz
Machine dimensions 12600×1950×1600 mm
Finished Board Sizes
  • 595×595×8.0 mm
  • 603×603×8.0 mm
  • 600×1200×8.0 mm
Our Services
  • Competitive Pricing: Direct factory pricing with 15+ years of specialization in PVC laminated gypsum ceiling tile machinery
  • Superior Quality: Rigorous quality control standards
  • Comprehensive Support: Full installation, commissioning, and operator training services
  • After-sales Service: Ongoing technical support and maintenance
Company Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, is a leading manufacturer specializing in plasterboard machinery research, production, and trade. Our credentials include:

  • HEBEI province municipal civilized and creditable unit
  • High-tech enterprise certification
  • National patent licenses
  • CE quality system certification (EU)
  • ISO9001 quality system certification
PVC 595*595 And 603*603 Automatic And Efficient Gypsum Board Lamination Machine 0
