Place of Origin: | Hebei , China (Mainland) |
Brand Name: | LVJOE |
Certification: | CE ISO 9001 |
Model Number: | 1300FM03 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines. |
Delivery Time: | 60 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 Sets Per Year |
Features: | Easy To Operate | Driven Type: | PLC System |
---|---|---|---|
Warranty: | 1 Year | Voltage: | 380V |
Weight: | 3-30t | Dimension(L*W*H): | 12600*1950*1600 |

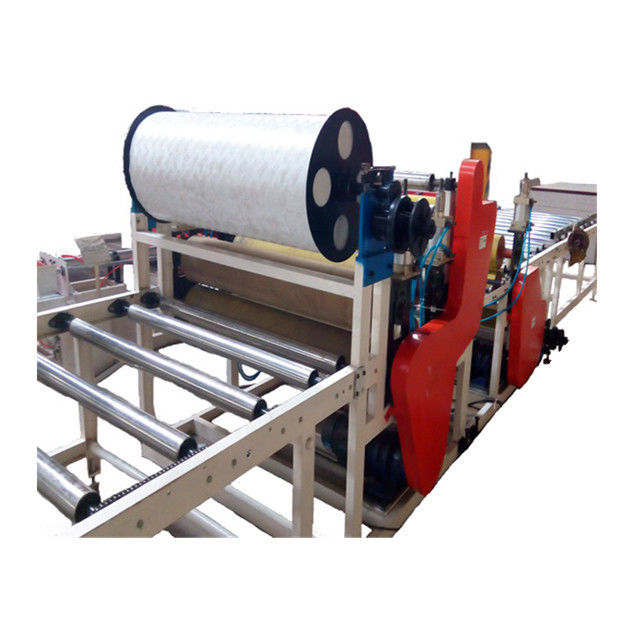

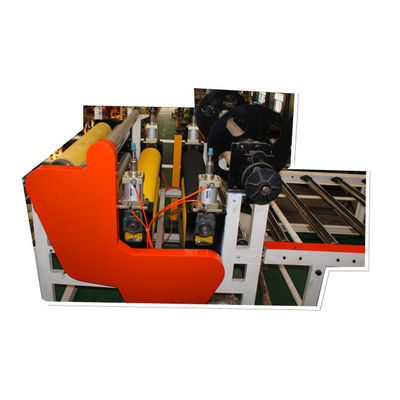

Gypsum Board Glue Coating PVC And Aluminum Foil Lamination Machine Price
Production Description
1.Features:
First, put the board on the rollers. After the dust collection process, coat the glue on the boards, the glue will
be qualitatived after conveying on the guide rollers.Then it will be combined with the film and enters into the
recombination mechanism.After passing and cyclic rolling of the two lines of press roller, pinch roller and
forming roller, the recombination is finished.
2.Technical parameters:
Type | LV--SFM01 | LV--SFM02 | LV--SFM03 | ||
Effective laminate width | ≤1300mm | ≤1300mm | ≤1300mm | ||
Thickness of sheet | 5---30mm | 5---30mm | 5---30mm | ||
Laminate speed | 3---15m/min | 3---15m/min | 3---15m/min | ||
Speed adjustment mode | Frequency conversion synchronous speed regulating | ||||
Board feeding and releasing mode | automatic | ||||
Films cutting mode | automatic | ||||
Total power | 8KW | 10KW | 20KW |
3.Usage and Characteristics
The machine is fit for the surface decorative materials, such as pasted and compound decorative film
and decorative paper, etc of the PVC baseboard, profile, low foaming board and wood board, etc.
4.Ceiling board
Board sheet material:PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc
Finished product size : 595*595mm,600*600mm,603*603mm,1200*600mm
Thickness: 7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm, 9.5mm, 12.5mm
5.USAGE
Gypsum ceiling board is laminated PVC film in front side and aluminum
film in back side of paper faced gypsum board. The features are
waterproof, moisture proof, flame resistant, thermal insulation,
radiation proof, anti-sagging, non-deformed, etc.
Guarantee time 1 year after machine installation
6.Our Services
1. Best Price; we have our own factory, who has been specialized in full automatic pvc laminated gypsum
ceiling tiles machine for more than 15 years, and you are welcome to our factory any time.
2. Superior Quality; quality is the life of all our business.
3. Best Service; we are the special International Trading Company of our factory, and especially focus on
exporting business.
4. Best after-sale service; our engineers will design scale of whole production line and help you with
installation and commissioning, and train your workers or employees until they know how to operate all equipment.
7.Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
