products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fully Automatic Lamination Machine
Created with Pixso.

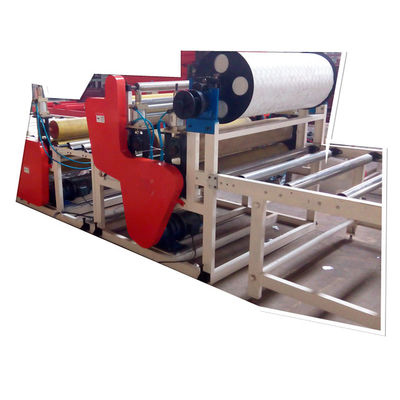

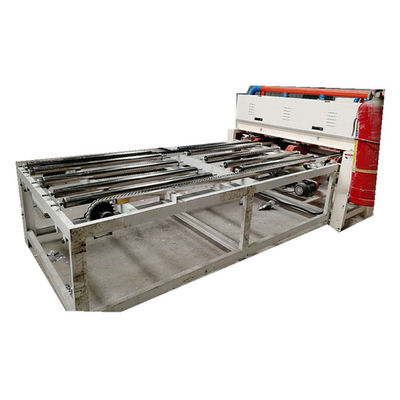

Hot Sale Interior Decoration Vinyl Faced Gypsum Ceiling Lamination Machine

Name

Hot Sale Interior Decoration Vinyl Faced Gypsum Ceiling Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM02
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Driven Type:
PLC System
Voltage:
380V
Dimension(L*W*H):
12600*1950*1600
Warranty:
1 Year
Weight:
3-30t
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

full automatic shrink wrapping machine

,

automatic packing machine

Product Description
Hot Sale Interior Decoration Vinyl Faced Gypsum Ceiling Lamination Machine
Product Specifications
Attribute Value
Driven Type PLC System
Voltage 380V
Dimension (L×W×H) 12600×1950×1600 mm
Features Easy To Operate
Warranty 1 Year
Weight 3-30t
Key Features
  • Performs heat shrinkable packaging for gypsum board after sealing and edge cutting
  • Utilizes infrared ray heating for film contraction
  • Packaging speed: 20m/minute
  • Compact dimensions: 1200×700×300mm
  • Powerful 18.75KW motor
Technical Parameters
Parameter Specification
Effective laminating width ≤1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-4 million Sq.m
Material Compatibility

Film Materials: PVC film, aluminum foils, decorative materials

Board Materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Customization: Available according to customer requirements

Finished Product Specifications

Standard Sizes: 595×595mm, 600×600mm, 603×603mm, 1200×600mm

Available Thicknesses: 7.0mm to 12.5mm in 0.5mm increments

Product Advantages

The laminated gypsum ceiling boards offer:

  • Waterproof and moisture proof properties
  • Flame resistance and thermal insulation
  • Radiation protection
  • Anti-sagging and non-deforming structure
Our Services
  • Competitive pricing from our direct factory
  • 15+ years of specialized manufacturing experience
  • Comprehensive after-sales support including installation and training
  • Quality assurance with 1-year warranty
Hot Sale Interior Decoration Vinyl Faced Gypsum Ceiling Lamination Machine 0
Thermoplastic Packing Machine Specifications
  • Power: 23KW, 380V
  • Speed: 500 packs/hour
  • Standard packing temperature: 160-180°C
  • Suitable film: PE, PUT
James Yang
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD.
Established in 1998
17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China
Mobile: +8615832254694
WeChat: 15832254694
Email: lvjoe3@greensontech.com
