Fully Automatic Lamination Machine
Created with Pixso.

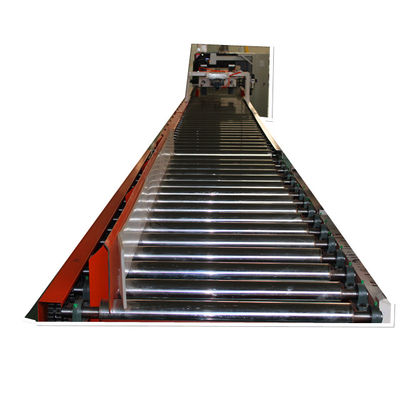

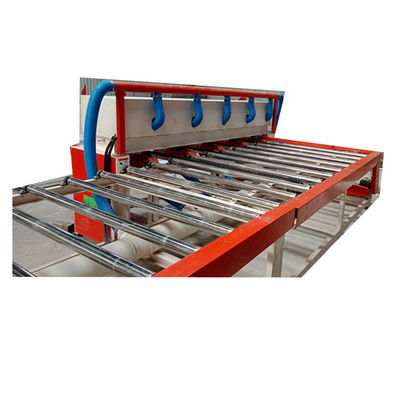

Gypsum Suspending Ceiling Board Lamination Machine With Dusty Exhausting System

Name

Gypsum Suspending Ceiling Board Lamination Machine With Dusty Exhausting System

Brand Name: LVJOE
Model Number: 1300FM03
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Driven Type:
PLC System
Voltage:
380V
Dimension(L*W*H):
12600*1950*1600
Warranty:
1 Year
Weight:
3-30t
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

full automatic shrink wrapping machine

,

automatic packing machine

Product Description
Gypsum Suspending Ceiling Board Lamination Machine With Dusty Exhausting System
Product Specifications
Attribute Value
Driven Type PLC System
Voltage 380V
Dimension (L×W×H) 12600×1950×1600
Features Easy To Operate
Warranty 1 Year
Weight 3-30t
Production Description

This specialized dust exhausting system is integrated with gypsum board lamination production lines. The electronic impulse-style dust collector efficiently recycles cutting dust, achieving optimal dust removal performance.

Technical Parameters
Model LV-130FM01
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 4kw
Finished Board Sizes
  • 595×595×8.0mm
  • 603×603×8.0mm
  • 600×1200×8.0mm
Applications

This machine laminates PVC film on the front side and aluminum film on the back side of paper-faced gypsum boards. The resulting ceiling boards feature:

  • Waterproof and moisture-proof properties
  • Flame resistance
  • Thermal insulation
  • Radiation protection
  • Anti-sagging and deformation resistance
Electrostatic Pulse Dust Collector

The system utilizes a high-voltage electric field to ionize flue gas, effectively separating charged dust particles from the airflow through electrostatic precipitation.

Gypsum Suspending Ceiling Board Lamination Machine With Dusty Exhausting System 0
Our Advantages
  • Competitive Pricing: Direct factory pricing with 15+ years of specialized manufacturing experience
  • Superior Quality: Rigorous quality control standards
  • Comprehensive Service: Dedicated international trade support
  • Complete After-sales: Including installation support, commissioning, and operator training
Company Profile

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, is a leading manufacturer specializing in plasterboard machinery. Our credentials include:

  • Municipal certified creditable enterprise
  • High-tech enterprise certification
  • National patent licenses
  • CE and ISO9001 quality certifications
James Yang
ADD: 17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China
Mobile Phone: +8615832254694
WeChat: 15832254694
E-mail: lvjoe3@greensontech.com
