Semi - Automatic Decorative PVC Film Laminate Board Machine 380V CE ISO Approved

Semi - Automatic Decorative PVC Film Laminate Board Machine 380V CE ISO Approved

Brand Name:	LVJOE
Model Number:	1300FM03
MOQ:	1 Set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei , China (Mainland)

Certification:

CE ISO 9001

Features:

Easy To Operate

Warranty:

1 Year

Weight:

3-30t

Dimension(L*W*H):

12600*1950*1600

Voltage:

380V

Driven Type:

PLC System

Packaging Details:

Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.

Supply Ability:

50 Sets Per Year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

Semi-Automatic Decorative PVC Film Laminate Board Machine 380V CE ISO Approved

Key Features

Attribute	Value
Features	Easy To Operate
Warranty	1 Year
Weight	3-30t
Dimension (LWH)	1260019501600
Voltage	380V
Driven Type	PLC System

Product Overview

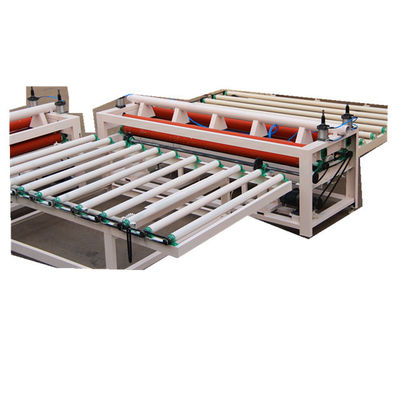

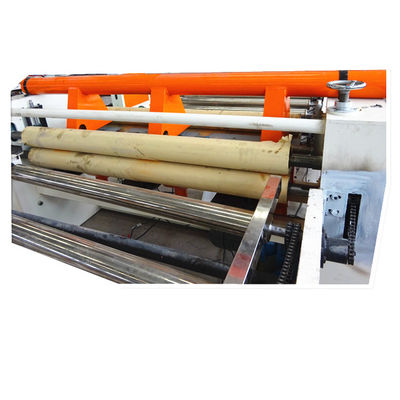

This semi-automatic decorative PVC film laminate board machine provides an economical solution for applying decorative films (PVC film, aluminum foil, wood grain) to various building materials including gypsum board, MGO board, fiber cement board, MDF, plywood, and PVC foam board.

Technical Specifications

Effective laminating width	≤1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m

Cutting Machine Details

Brand: LVJOE
Standard sizes: 603×603mm, 595×595mm (custom sizes available)
Cutting speed: 15m/min
Cutting configuration: Three portrait knives, five lateral knives
Power: 17.15KW

Finished Product Specifications

Standard board size: 1220×2440mm (custom designs available)
Ceiling thickness options: 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
Cutting size options: 595×595mm, 600×600mm, 603×603mm, 605×605mm

Applications

The laminated boards produced by this machine feature waterproof, moisture-proof, flame-resistant, and thermally insulating properties, making them ideal for demanding environments such as hotels, hospitals, schools, residential buildings, and industrial facilities.

Our Advantages

Competitive Pricing: Direct factory pricing with 15+ years of manufacturing experience
Quality Assurance: Rigorous quality control processes
Comprehensive Support: Installation assistance, commissioning, and operator training
After-Sales Service: 1-year warranty with technical support

Company Profile

HEBEI LVJOE MACHINERY MANUFACTURING CO., LTD., established in 1998, is a leading manufacturer specializing in plasterboard machinery. The company holds multiple certifications including CE, ISO9001, and national patents, recognized as a high-tech enterprise by the Chinese government.
