PVC Gypsum Ceiling Machine Building Materials Machinery 15m/Min Speed

PVC Gypsum Ceiling Machine Building Materials Machinery 15m/Min Speed

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

PVC Gypsum Ceiling Machine Building Materials Machinery 15m/Min Speed

Product Specifications

Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

Product Overview

This gypsum board lamination machine applies specialized technology to laminate film onto paper-faced plasterboard surfaces through sticking and pressing processes. The resulting visual effect is distinctive, making it ideal for personalized decoration requirements.

Key Features

Environmentally friendly and healthy production
Diverse patterns, rich textures, and complete color options
Dust-free, moisture-proof, and mold-resistant properties
Easy cleaning and maintenance
Simple operation requiring no secondary decoration

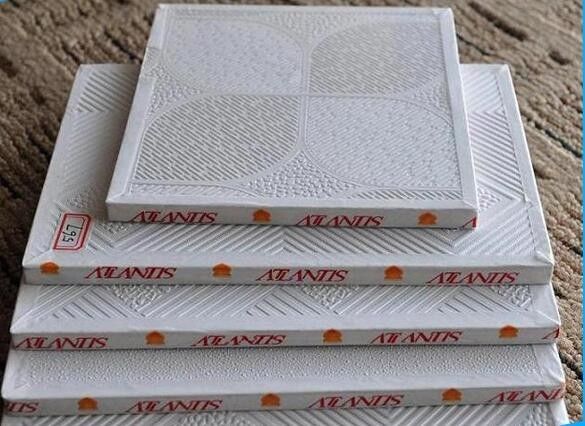

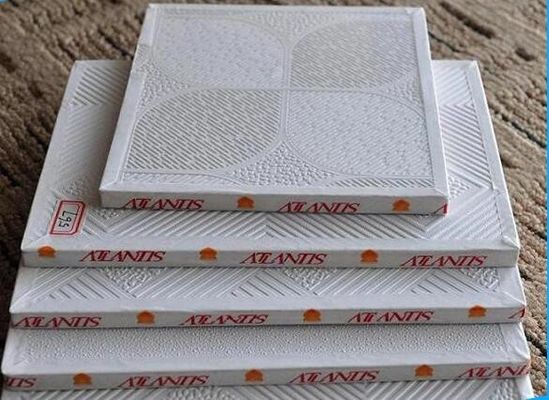

PVC film laminated gypsum board offers waterproof, fireproof, and soundproof advantages. Its excellent visual effects and cleanliness make it widely used for ceilings and partition walls in commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technical Specifications

Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-6 million Sq.m
Film Material	PVC film, aluminum foils, decorative material
Board Sheet Material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available according to customer requirements.

Production Process Flow

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Main Equipment Components

Automatic Loading Device: Ensures continuous material feeding into the production line.

Lamination Machine: Combines decorative film with boards through dust collection, glue coating, and precision rolling processes.

Automatic Cutting Machine: Precisely cuts laminated gypsum boards to required dimensions via dual cutting systems.

Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fan and pipes for efficient dust removal during cutting operations.

Automatic Overturn System: Enables dual-side processing capability.

Automatic Stacking Machine: Organizes finished products for packaging.

Automatic Sealing & Packaging Machine: Uses heat-shrink film wrapping for moisture-proof product protection.
