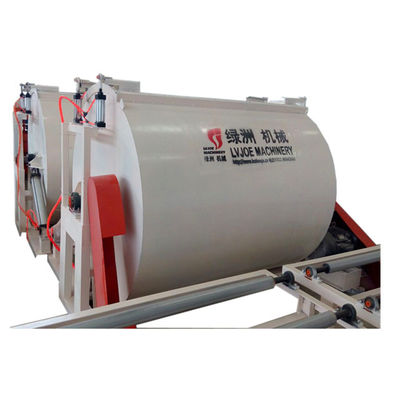

Multi Functional Gypsum Board Production Line Corrugated Board Making Machine

This advanced production line manufactures various magnesium oxide boards suitable for ceilings, wall skirting, interior wall decoration, and furniture lining. It serves as an eco-friendly, cost-effective alternative to traditional materials like plywood, flake board, MDF, and gypsum board.

The boards are formed using crushed crop straw or sawdust combined with inorganic chemical materials through roller-extrusion. Raw materials are widely available and easily sourced, ensuring cost-effective production.

• No high temperature or pressure requirements during production
• Single-step forming process at normal temperature and pressure
• Zero waste production - no wastewater, materials, or gas emissions
• Finished boards dry naturally at room temperature without additional processing
• Environmentally friendly green production process

• Oxygenic index: >90%
• Level combustion: SO
• Vertical combustion: SO
• Water content rate: 10.9%
• Capacity: 1.15g/cm3
• Static bending intensity: 169.46Mpa
• Density: 1.13 T/m3
• Water resistance: No surface changes after 24-hour immersion
• Environmentally friendly with no waste production

We offer 6 equipment models suitable for large, medium, and small-scale production, all capable of manufacturing boards with identical quality but different output capacities.

Board specifications:

• Thickness range: 2-60mm (adjustable)
• Maximum width: 1,300mm
• Unlimited length
• Standard size: 1.22m × 2.44m

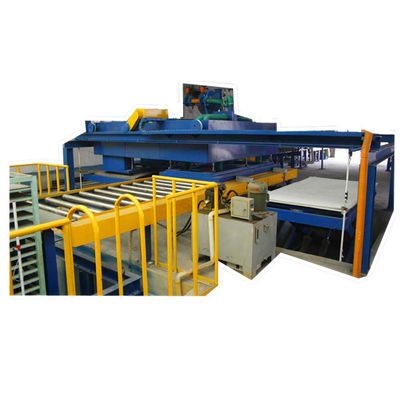

The wet boards enter the automated receiving system after being cut to preset lengths. This microcomputer-controlled system uses dual elevators to organize boards onto curing transporters in layers (20 boards per transporter), enabling continuous production through alternating elevator operation.

• Free technical training included with equipment purchase
• On-site installation and testing until successful production
• Training for 2-3 technical personnel
• Long-term technical consultation and follow-up services
• 1-year equipment warranty
