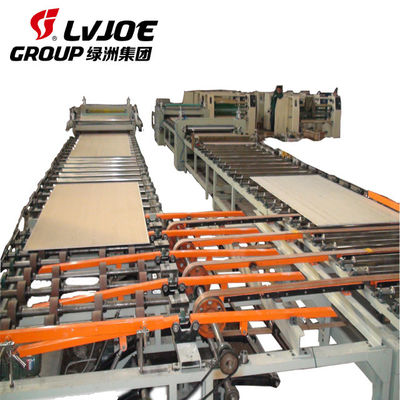

Most Popular Laminating Gypsum Board Machine / Single Side and Double Side

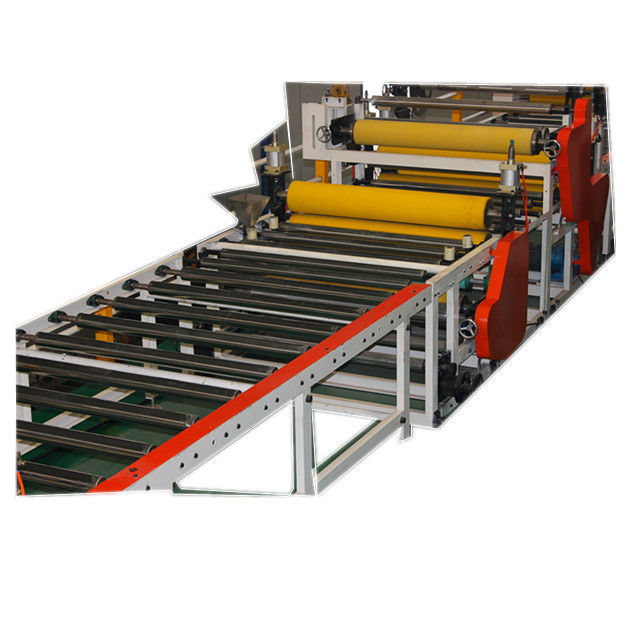

The gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels.

• Automatic board feeding
• Pre dusting
• Coating
• Drying and conveying
• Aluminum foil unwinding
• Pneumatic lamination for film and gypsum board
• Cutting
• Conveying
• Automatic overturn
• Second coating
• Final drying and conveying
• PVC film unwinding
• Final pneumatic lamination
• Cutting (manual or automatic)
• Lengthwise and horizontal cutting
• Belt conveyor output
• Autolift stacking
• Stretch packing
• Finished products stacking

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

• Max. Load-bearing: 3000kg
• Stroke: 1500mm
• Min. Height: 620mm
• Max. Height: 2000mm
• Platform size: 1200*2400mm

Features two cutting systems (vertical/longitudinal and horizontal) with dust collector system.

• Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
• Cutting speed: 15m/min
• Cutting knives: 3 vertical/longitudinal blades, 5 horizontal blades
• Overall power: 17.15KW

• Sheet thickness: 5-30mm
• Speed adjustment: Frequency conversion synchronous speed regulating
• Annual capacity: 2-4 million Sq.m
• Film material: PVC film, aluminum foils, decorative material
• Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
• Stacking mode: 10 layers (4 packages/layer)
• Overall dimension: 56000mm length × 9200mm width
• Lamination modes:
  • Double side: laminate front and back simultaneously
  • Single side: laminate one side at a time
