Gypsum Ceiling Tile Production Line
Created with Pixso.

China PVC Laminated Gypsum Ceiling Tiles Complete Production Line

Name

China PVC Laminated Gypsum Ceiling Tiles Complete Production Line

Brand Name: LVJOE
Model Number: 1300FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei，China(Mainland)
Certification:
ISO CE
Finished Board Type:
PVC Laminated Gypsum Board
Effective Laminating:
1300mm
Electric Control:
PLC System
Production Capacity:
2-4 Million Sq.m/year
Speed:
2-15m/min (adjustable)
After-sales Service:
Engineers Available To Service
Warranty:
1 Year
Glue Type:
Water Glue For PVC Film
Packaging Details:
Standard packing
Supply Ability:
10 lines per Year
Highlight:

PVC Ceiling Tile Production Line

,

Laminated Gypsum Ceiling Tile Production Line

,

Complete Ceiling Tile Production Line

Product Description
PVC Laminated Gypsum Ceiling Tiles Complete Production Line
Product Overview

This complete production line specializes in laminating fiber glass, paper, PVC film and aluminum foil onto gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Key Specifications
Attribute Value
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Electric control PLC system
Production Capacity 2-4 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Production Process
  • Automatic board feeding
  • Pre dusting and coating
  • Drying and conveying
  • Aluminum foil/PVC film unwinding

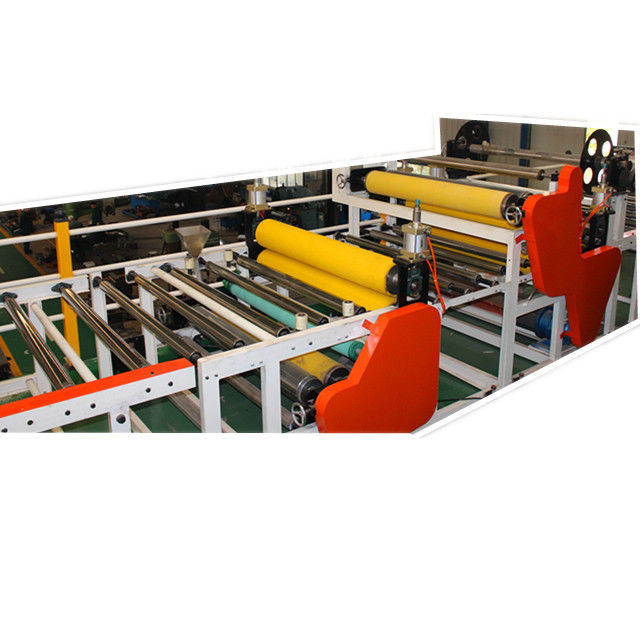

  • Pneumatic lamination
  • Cutting (manual/automatic)
  • Lengthwise and horizontal cutting
  • Belt conveyor output
  • Autolift stacking
  • Stretch packing
Core Components
Automatic Gypsum Board Feeding Machine
  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Height range: 620mm-2000mm
  • Platform size: 1200*2400mm

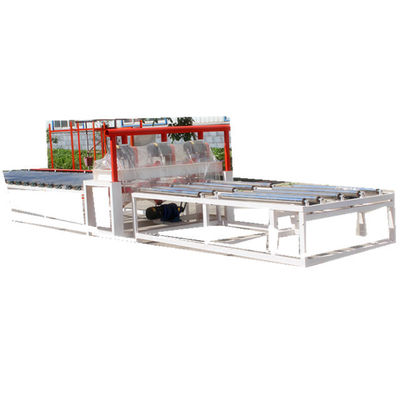

Automatic Cutting Machine
  • Vertical/longitudinal and horizontal cutting systems
  • Dust collector system included
  • Cuts 1.2*2.4m boards to 603*603mm/595*595mm
  • Cutting speed: 15m/min
  • Overall power: 17.15KW
Technical Parameters
  • Sheet thickness: 5-30mm
  • Speed adjustment: Frequency conversion synchronous speed regulating
  • Film material: PVC film, aluminum foils, decorative material
  • Board sheet material: PVC baseboard, gypsum board, wood board, etc.
  • Stacking mode: 10 layers (4 packages/layer)
  • Overall dimension: 56000mm length × 9200mm width
  • Lamination options: Double side or single side
China PVC Laminated Gypsum Ceiling Tiles Complete Production Line 0
