Professional Double Side PVC Film Laminating Machine 15m/Min Speed

Professional Double Side PVC Film Laminating Machine 15m/Min Speed

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Place Of Origin:

Shijiazhuang, Hebei Province

Capacity:

2-6 Million Sqm

Speed Adjustment Way:

Frequency Conversion Synchronous Speed Regulating

Film Material:

PVC Film, Aluminum Foils, Decorative Material, Etc.

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

Professional Double Side PVC Film Laminating Machine 15m/Min Speed

Product Specifications

Attribute	Value
Raw Material	Gypsum board, PVC film, aluminum foil, glue
Place of Origin	Shijiazhuang, Hebei province
Capacity	2-6 million sqm
Speed Adjustment	Frequency conversion synchronous speed regulating
Film Material	PVC film, aluminum foils, decorative material, etc.
Laminating Speed	15m/min

Product Description

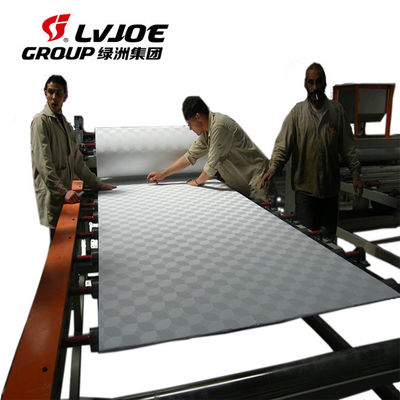

Our gypsum board laminating machine applies special technology to laminate film onto paper-faced plasterboard surfaces through sticking and pressing processes. The result offers unique visual effects ideal for personalized decoration needs.

Key Features

Environmentally friendly and healthy materials
Wide variety of patterns, textures, and complete color options
Dust-free, moisture-proof, and mold-resistant
Easy to clean and maintain
Simple operation requiring no secondary decoration

PVC film laminated gypsum board offers waterproof, fireproof, and soundproof advantages, making it perfect for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technology Overview

This advanced machine utilizes the latest coating and laminating technology to bond functional or decorative films with board materials through synchronous processing.

Technical Parameters

Effective laminating width: 1300mm

Sheet thickness: 5-30mm

Laminating speed: 15m/min

Speed adjustment: Frequency conversion synchronous speed regulating

Electrical control: PLC

Annual capacity: 2-6 million Sq.m

Film material: PVC film, aluminum foils, decorative material, etc.

Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Custom configurations available to meet specific customer requirements.

Production Process Flow

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Core Equipment Components

Automatic Loading Device: Ensures continuous material feeding into the production line.

Lamination Machine: Bonds decorative films to boards through dust collection, glue application, and precision roller pressing mechanisms.

Automatic Cutting Machine: Precisely cuts laminated gypsum boards to required dimensions using dual cutting systems.

Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fans and pipes for efficient dust removal during cutting operations.

Automatic Overturn System: Enables double-sided processing capability.

Automatic Stacking Machine: Organizes finished products for packaging.

Automatic Sealing & Packaging Machine: Uses heat-shrink film packaging to protect finished boards from moisture during storage and transport.
