Automatic Gypsum Board Laminating Machine For House Decorative

Automatic Gypsum Board Laminating Machine For House Decorative

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-4 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

Automatic Gypsum Board Laminating Machine

Gypsum Board Laminating Machine For House Decorative

Product Description

Automatic Gypsum Board Laminating Machine For House Decorative

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-4 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Product Overview

This automatic gypsum board laminating machine applies fiber glass, paper, PVC film and aluminum foil to gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Production Process

Automatic board feeding
Pre-dusting and coating
Drying and conveying
Aluminum foil/PVC film unwinding

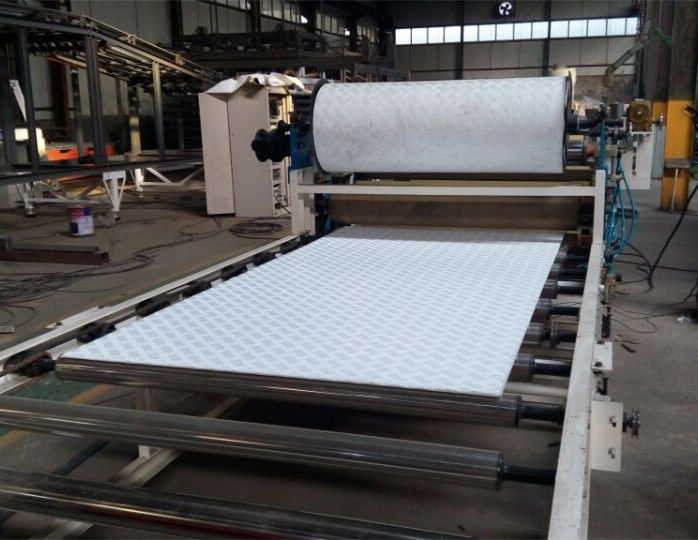

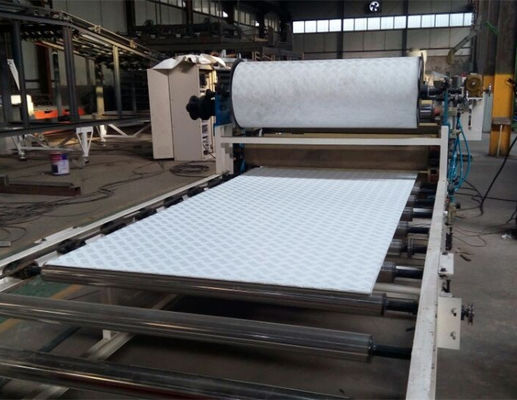

Pneumatic lamination process
Precision cutting (manual/automatic options)
Lengthwise and horizontal cutting
Belt conveyor output
Automatic stacking and stretch packing

Key Components

Automatic Gypsum Board Feeding Machine

Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm-2000mm
Platform size: 1200*2400mm

Automatic Cutting Machine

Two cutting systems: vertical/longitudinal and horizontal
Equipped with dust collector system
Converts 1.2*2.4m boards to 603*603mm/595*595mm sizes
Cutting speed: 15m/min
Total power: 17.15KW

Technical Parameters

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking capacity: 10 layers (4 packages/layer)
Overall dimension: 56000mm length × 9200mm width

Lamination Options
