Ceiling Board Lamination Machine Gypsum Board Perforating Machine

Ceiling Board Lamination Machine Gypsum Board Perforating Machine

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-4 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

Ceiling Board Lamination Machine

Gypsum Board Perforating Machine

Gypsum Ceiling Panel Line

Product Description

Ceiling Board Lamination Machine Gypsum Board Perforating Machine

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-4 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Product Overview

This gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Production Process

Automatic board feeding
Pre dusting
Coating
Drying and conveying
Aluminum foil unwinding
Pneumatic lamination for film and gypsum board
Cutting (manual/automatic)
Lengthwise and horizontal cutting
Belt conveyor output
Autolift stacking
Stretch packing

Key Components

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum boards from stack lift platform to conveyor rolls
Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm-2000mm
Platform size: 1200×2400mm

Automatic Cutting Machine

Two cutting systems: vertical/longitudinal and horizontal
Equipped with dust collector system
Cuts 1.2×2.4m boards to 603×603mm/595×595mm sizes
Cutting speed: 15m/min
Cutting knives: 3 vertical/longitudinal blades, 5 horizontal blades
Overall power: 17.15KW

Technical Parameters

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Overall dimension: 56000×9200mm
Lamination modes: Double side or single side

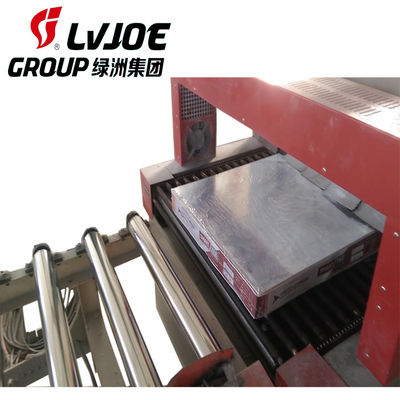

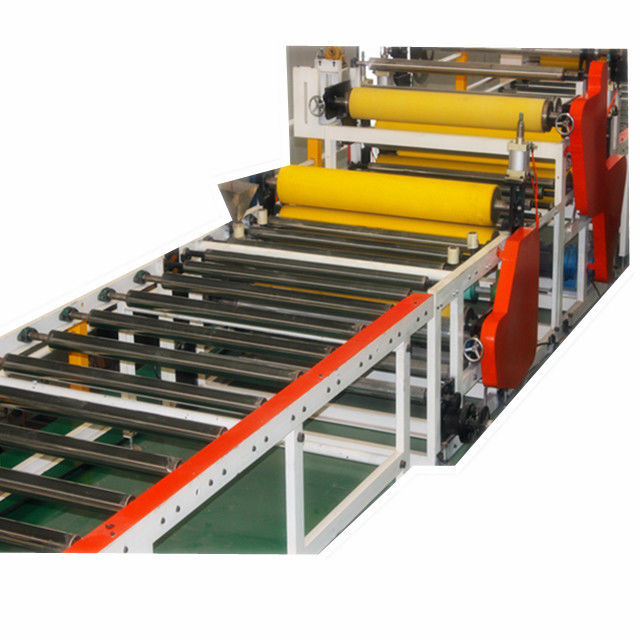

Machine Image
