Vinyl Coated 60x60 PVC Laminated Machine for Gypsum Board with Standard Size

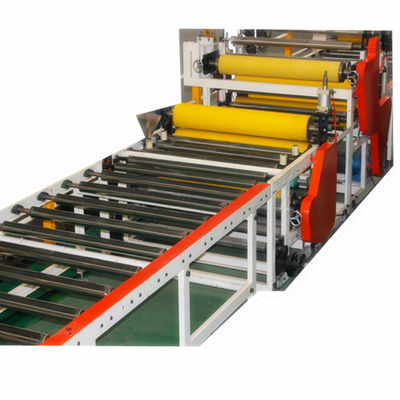

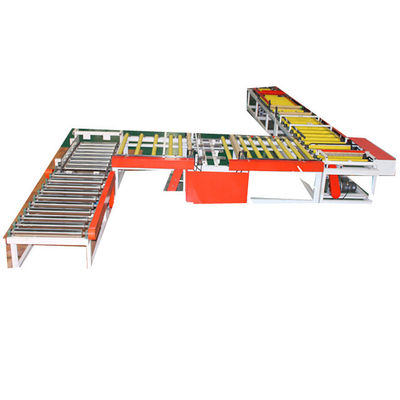

This gypsum board lamination machine is designed for laminating various materials including fiber glass, paper, PVC film and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels.

• Automatic board feeding
• Pre dusting
• Coating
• Drying and conveying
• Aluminum foil unwinding
• Pneumatic lamination for film and gypsum board
• Cutting
• Conveying
• Automatic overturn
• Coating
• Drying and conveying
• PVC film unwinding
• Pneumatic lamination for film and gypsum board
• Cutting (manual/automatic)
• Drying and conveying
• Lengthwise cutting
• Horizontal cutting
• Belt conveyor output
• Autolift stacking conveying
• Stretch packing
• Conveying
• Lift (finished products stacking)

• Cylinder pushes gypsum board from stack lift platform to conveyor roll
• Max. Load-bearing: 3000kg
• Stroke: 1500mm
• Min. Height: 620mm
• Max. Height: 2000mm
• Platform size: 1200*2400mm

• Two cutting systems: vertical/longitudinal and horizontal
• Equipped with dust collector system
• Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
• Cutting speed: 15m/min
• Cutting knives: vertical/longitudinal - 3 blades; horizontal - 5 blades
• Overall power: 17.15KW

• Sheet thickness: 5-30mm
• Speed adjustment: Frequency conversion synchronous speed regulating
• Annual capacity: 2-4 million Sq.m
• Film material: PVC film, aluminum foils, decorative material, etc.
• Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.
• Stacking mode: 10 layers (4 packages/layer)
• Cutting mode: lengthways - 3 blades, horizontal - 5 blades
• Overall dimension: length - 56000mm, width - 9200mm
• Lamination mode: Double side (laminate front side and back at one time) or single side (laminate one side at one time)
