Automatic Gypsum Ceiling Tile Production Line 15m/Min Laminating Speed

Automatic Gypsum Ceiling Tile Production Line 15m/Min Laminating Speed

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

Automatic Gypsum Ceiling Tile Production Line 15m/Min Laminating Speed

Product Specifications

Attribute	Value
Raw Material	gypsum board, PVC film, aluminum foil, glue
Condition	new
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

About the Manufacturer

Hebei Greens Building Material Technology Development Co., Ltd (a branch company of Lvjoe Group) is a leading building material machinery manufacturer specializing in research, design, manufacturing, project equipment integration and international trade.

Founded in 1998 as Hebei LVJOE Machinery Manufacturing Co. Ltd., the company expanded to form Lvjoe Group in 2016. Our product lines include gypsum board lamination machines, mineral fiber board production lines, fiber cement board production lines, MgO board production lines, EPS Lightweight Sandwich Wall Panel Machines, and gypsum cornice production lines.

Product Overview

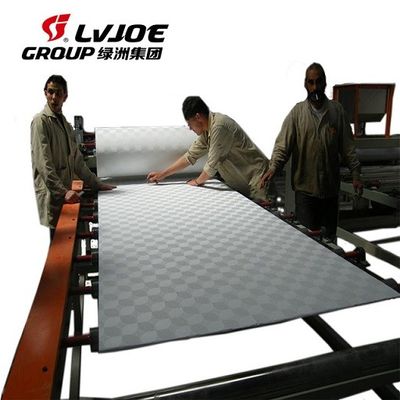

Our gypsum board lamination technology bonds decorative films to paper-faced plasterboard through specialized sticking and pressing processes, creating unique visual effects for personalized decoration needs.

Key Features

Environmentally friendly production process
Wide variety of patterns, textures, and colors available
Dust-free, moisture-proof, and mold-resistant
Easy cleaning and maintenance
Simple operation requiring no secondary decoration

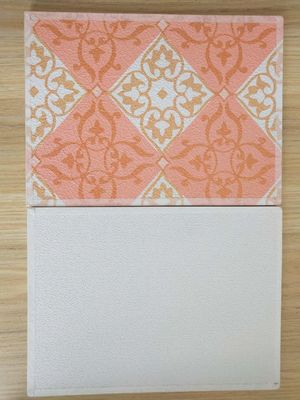

PVC film laminated gypsum board offers excellent waterproofing, fireproofing, and soundproofing properties, making it ideal for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

Technical Specifications

Effective laminating width: 1300mm

Sheet thickness: 5-30mm

Laminating speed: 15m/min

Speed adjustment: Frequency conversion synchronous speed regulating

Electrical control: PLC

Annual capacity: 2-6 million Sq.m

Film material: PVC film, aluminum foils, decorative material

Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements

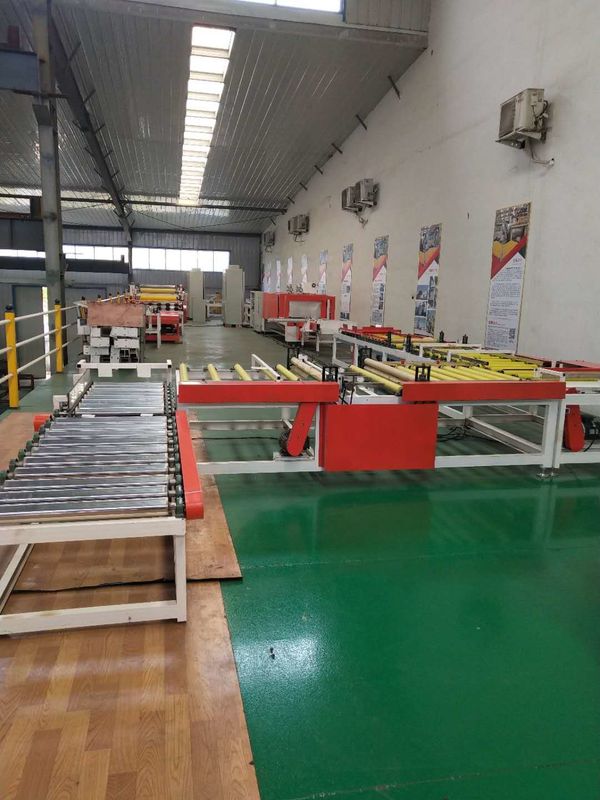

Production Process Flow

Automatic board feeding → Pre-dusting → Coating → Drying and conveying → Aluminum foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Auto-lift stacking → Stretch packing → Conveying → Finished products stacking

Main Equipment Components

Automatic loading device: Ensures continuous material feeding

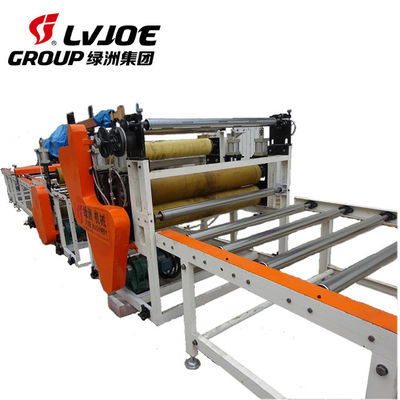

Lamination machine: Bonds decorative films to boards through precise glue application and pressure rolling
Automatic cutting machine: Precisely cuts laminated boards to required dimensions
Electrostatic Pulse Bag Style Dust Collector: Maintains clean production environment with efficient dust removal
Automatic overturn system: Enables double-sided processing
Automatic stacking and packaging: Includes stacking machine, sealing machine, and shrink-wrap packaging for moisture protection
