Fully Automatic Lamination Machine
Created with Pixso.

Auto Gypsum Board Wrapping Machine 380v 23kw Power Easy To Clean And Maintain

Auto Gypsum Board Wrapping Machine 380v 23kw Power Easy To Clean And Maintain

Brand Name: LVJOE
Model Number: Lvjoe-FM
MOQ: 1 line
Price: US $20000-200000
Supply Ability: 10 line per year
Detail Information
Place of Origin:
Shijiazhuang, Hebei province
Certification:
ISO CE
Raw Material:
Gypsum Board, PVC Film, Aluminum Foil, Glue
Condition:
New
Capacity:
2-6 Million Sqm
Original:
Hebei Province
Effective Laminating Width:
1300mm
Laminating Speed:
15m/min
Packaging Details:
PE film packing
Supply Ability:
10 line per year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description
Auto Gypsum Board Wrapping Machine 380v 23kw Power Easy To Clean And Maintain
Product Specifications
Raw Material Gypsum board, PVC film, aluminum foil, glue
Condition New
Capacity 2-6 million sqm
Origin Hebei province
Effective Laminating Width 1300mm
Laminating Speed 15m/min
Product Overview

This thermoplastic packing machine is designed as a complementary product for gypsum board lamination, specifically for packing PVC gypsum board finished products with advanced packaging technology.

Key Features
  • Moisture-proof packaging through heat-shrink film technology
  • Continuous adjustable-speed operation
  • High automation reduces labor costs
  • Secure packaging that won't loosen or damage boards
Electric Source: 380v
Power: 23kw
Speed: 500 packs/hour
Standard Packing Temperature: 160℃-180℃
Speed Regulation: PE PVC POP
Production Advantages
  • Environmentally friendly and healthy materials
  • Wide variety of patterns, textures and colors
  • Dust-free, moisture-proof and mold-proof
  • Simple maintenance and cleaning
  • Easy operation without need for secondary decoration

PVC film laminated gypsum board offers waterproof, fireproof and soundproof properties, making it ideal for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, theaters and other public spaces.

Technical Specifications
Effective Laminating Width 1300mm
Sheet Thickness 5-30mm
Laminating Speed 15m/min
Speed Adjustment Frequency conversion synchronous speed regulating
Electrical Control PLC
Annual Capacity 2-6 million Sq.m
Film Material PVC film, aluminum foils, decorative material
Board Sheet Material PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available according to customer requirements.

Production Line Workflow

Automatic board feeding → pre dusting → coating → drying and conveying → aluminium foil unwinding → pneumatic lamination → cutting → conveying → automatic overturn → coating → drying and conveying → PVC film unwinding → pneumatic lamination → cutting → drying and conveying → lengthwise cutting → horizontal cutting → belt conveyor output → autolift stacking conveying → stretch packing → conveying → lift (finished products stacking)

Auto Gypsum Board Wrapping Machine 380v 23kw Power Easy To Clean And Maintain 0
Key Equipment Components
1. Automatic Loading Device

Ensures continuous material feeding into the production line.

2. Lamination Machine

Combines decorative film and boards through a process of dust collection, glue coating, and precision rolling through press rollers and forming rollers.

3. Automatic Cutting Machine

Precisely cuts laminated gypsum boards to required dimensions using a two-stage cutting process.

4. Electrostatic Pulse Bag Style Dust Collector

Equipped with large dust exhaust fan and pipes for efficient dust removal during cutting operations.

5. Automatic Overturn System

Facilitates two-sided processing of boards.

6. Automatic Stacking Machine

Organizes finished products for packaging.

7. Automatic Sealing Machine

Ensures secure packaging of finished products.

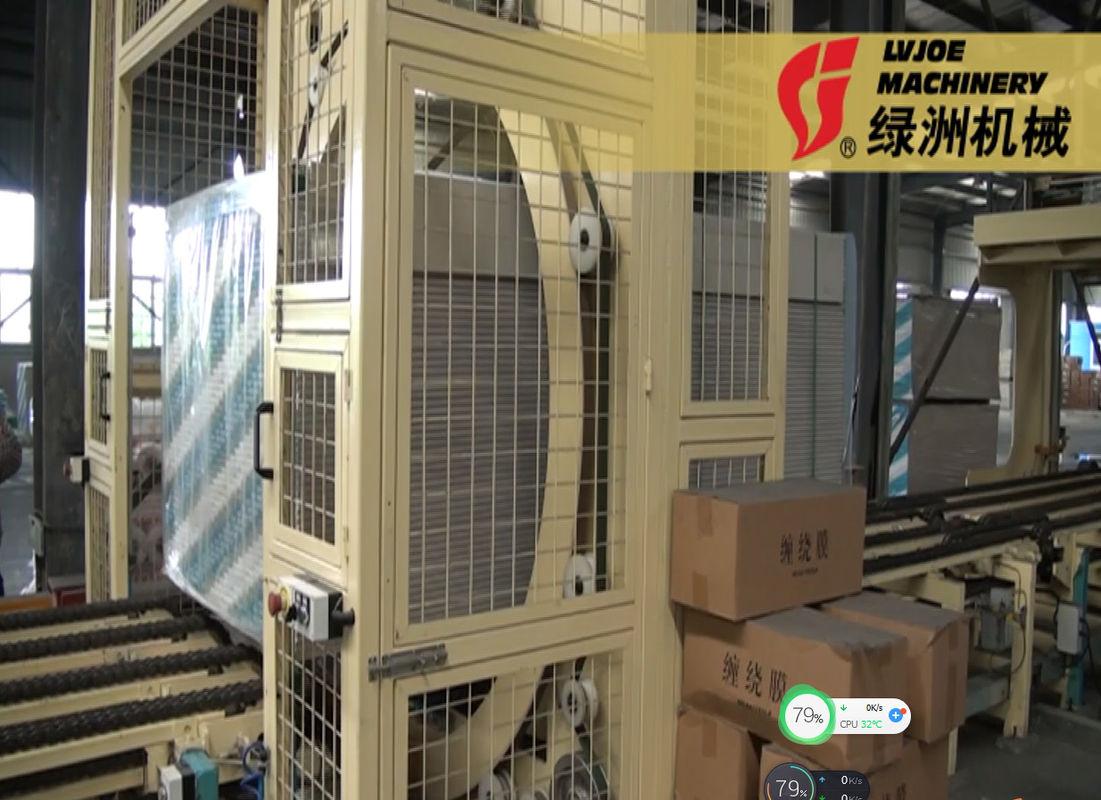

8. Automatic Package Machine

Utilizes heat-shrink film technology for moisture-proof packaging of finished gypsum boards.
