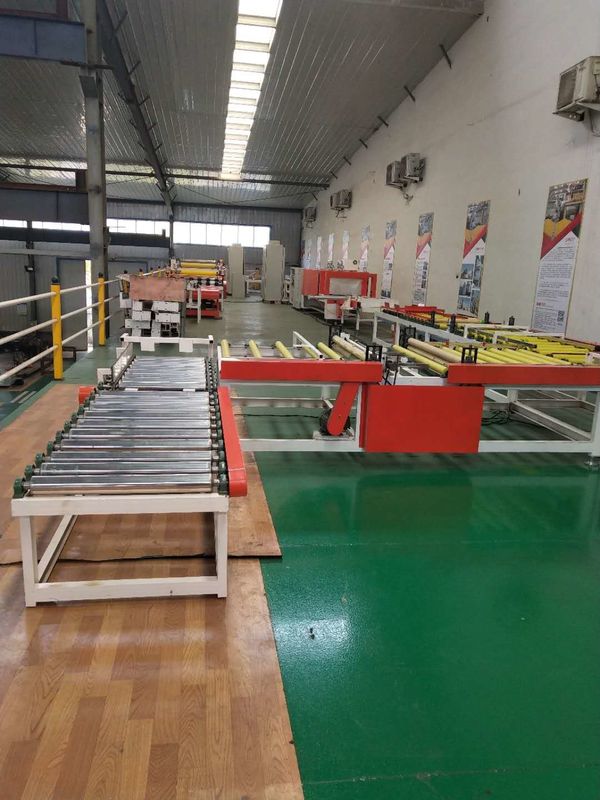

Automatic vinyl gypsum board machine

Automatic vinyl gypsum board machine

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Place Of Origin:

Shijiazhuang, Hebei Province

Capacity:

2-6 Million Sqm

Speed Adjustment Way:

Frequency Conversion Synchronous Speed Regulating

Film Material:

PVC Film, Aluminum Foils, Decorative Material, Etc.

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Product Description

Automatic Vinyl Gypsum Board Machine

Product Specifications

Attribute	Value
Raw Material	Gypsum board, PVC film, aluminum foil, glue
Place of Origin	Shijiazhuang, Hebei province
Capacity	2-6 million sqm
Speed Adjustment	Frequency conversion synchronous speed regulating
Film Material	PVC film, aluminum foils, decorative material, etc.
Laminating Speed	15m/min

Product Overview

Our automatic vinyl gypsum board machine laminates film onto paper-faced plasterboard using specialized sticking and pressing technology. The resulting product offers unique visual effects ideal for personalized decoration needs.

Key Features

Environmentally friendly and healthy
Diverse patterns, rich textures, and complete color options
Dust-free, moisture-proof, and mold-resistant
Easy to clean and maintain
Simple operation requiring no secondary decoration

The PVC film laminated gypsum board offers waterproof, fireproof, and soundproof properties. Its excellent visual appeal and cleanliness make it widely used for ceilings and partition walls in commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technical Parameters

Parameter	Value
Effective Laminating Width	1300mm
Sheet Thickness	5-30mm
Laminating Speed	15m/min
Speed Adjustment	Frequency conversion synchronous speed regulating
Electrical Control	PLC
Annual Capacity	2-6 million Sq.m
Board Sheet Material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.

Note: Custom configurations available according to customer requirements.

Production Process Flow

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Main Equipment Components

1. Automatic Loading Device

2. Lamination Machine

The lamination machine bonds decorative film to boards through a precise process: boards are placed on rollers, undergo dust collection, receive glue coating which is then quality-checked on guide rollers, and finally combined with film through press rollers and forming rollers.

3. Automatic Cutting Machine

Precisely cuts laminated gypsum boards into decorative pieces through a two-stage cutting process with conveying rollers.

4. Electrostatic Pulse Bag Style Dust Collector

Features large dust exhaust fan and pipe for efficient dust removal in the automatic cutter system.

5. Automatic Overturn System

6. Automatic Stacking Machine

7. Automatic Sealing Machine

8. Automatic Package Machine

Advanced packaging system that covers gypsum boards with shrink film for moisture protection through a heating process.
