Fully Automatic Lamination Machine
Created with Pixso.

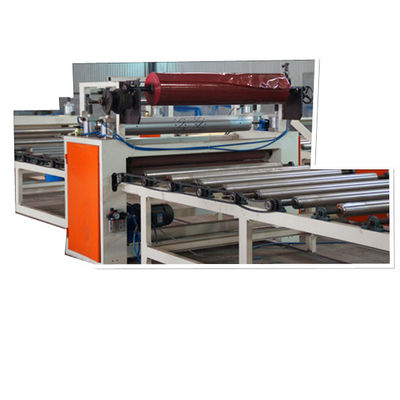

4KW Power Gypsum Board Lamination Machine 15m/Min Speed CE ISO 9001 Listed

Name

4KW Power Gypsum Board Lamination Machine 15m/Min Speed CE ISO 9001 Listed

Brand Name: LVJOE
Model Number: 1300FM01
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei, China (Mainland)
Certification:
CE ISO9001
Features:
Easy To Operate
Installed Power:
4KW
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Effevtive Lamination Width:
≤1300
Thickness Of Sheet:
5-30mm
Laminating Speed:
15m/min
Packaging Details:
Standard package for gypsum board lamination machine export or as per requirement
Supply Ability:
50 Set/Sets per Year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description
4KW Power Gypsum Board Lamination Machine 15m/Min Speed CE ISO 9001 Listed
Product Specifications
Attribute Value
Installed Power 4KW
Features Easy To Operate
After-sales Service Engineers Available To Service Machinery Overseas
Effective Lamination Width ≤1300mm
Thickness Of Sheet 5-30mm
Laminating Speed 15m/min
High Quality Gypsum Board Lamination Machine

Professional-grade lamination equipment designed for efficient production of decorative gypsum boards with consistent quality output.

Technical Parameters
Model LV-130FM03
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 22kw
Standard PVC Gypsum Board Sizes
  • 595 × 595 × 8.0mm
  • 603 × 603 × 8.0mm
  • 600 × 1200 × 8.0mm

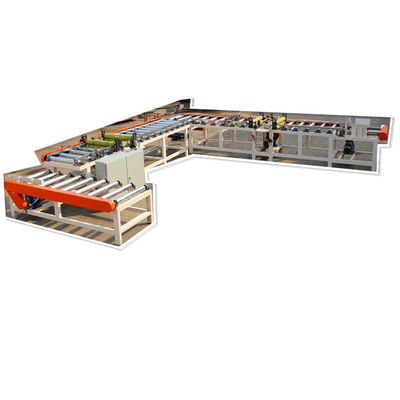

Automatic Cutting System

Integrated cutting machine precisely trims laminated gypsum boards to required dimensions according to saw gauge standards. The process involves:

  1. Board placement on delivery roll
  2. First pass through cutting system
  3. Second pass through cutting system via delivery roll
  4. Final board output
4KW Power Gypsum Board Lamination Machine 15m/Min Speed CE ISO 9001 Listed 0
Our Manufacturing Advantages
  • Competitive Pricing: Direct factory pricing with 15+ years of specialized experience in PVC laminated gypsum ceiling tile machinery
  • Superior Quality: Rigorous quality control standards implemented throughout production
  • Export Expertise: Dedicated international trading division focused on global equipment distribution
  • Comprehensive Support: Full-service installation, commissioning, and operator training by our engineering team
