Small Machines For Business Gypsum Board Waterproof False Lamination Machine

Small Machines For Business Gypsum Board Waterproof False Lamination Machine

Brand Name:	LVJOE
Model Number:	1300FM02
MOQ:	1 Set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei , China (Mainland)

Certification:

CE ISO 9001

Features: Easy To Operate:

Features: Easy To Operate

Weight: 3-30t:

Weight: 3-30t

Driven Type: PLC System:

Driven Type: PLC System

Voltage: 380V:

Voltage: 380V

Warranty: 1 Year:

Warranty: 1 Year

Dimension(L*W*H): 12600*1950*1600:

Dimension(L*W*H): 12600*1950*1600

Packaging Details:

Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.

Supply Ability:

50 Sets Per Year

Highlight:

heat shrink packing machine

full automatic shrink wrapping machine

Product Description

Small Machines For Business Gypsum Board Waterproof False Lamination Machine

Product Specifications

Features	Easy To Operate
Weight	3-30t
Driven Type	PLC System
Voltage	380V
Warranty	1 Year
Dimensions (L×W×H)	12600×1950×1600 mm

Product Description

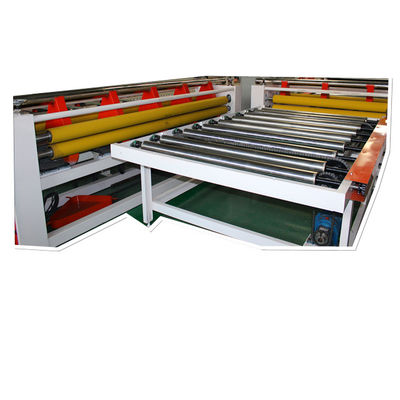

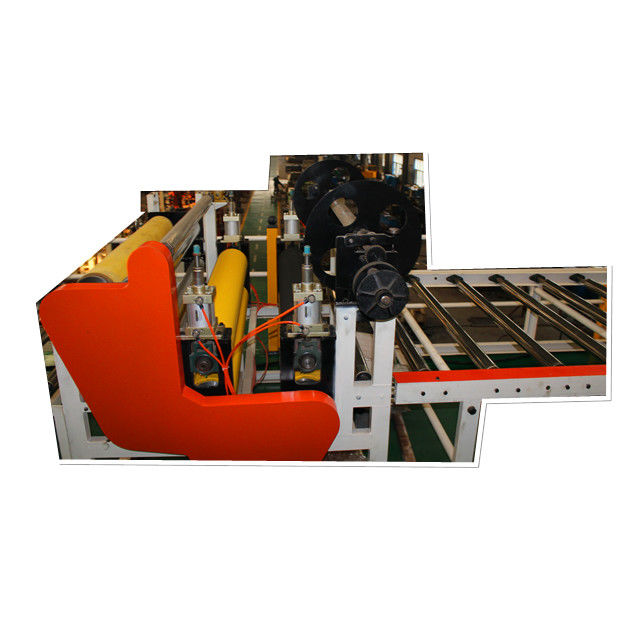

The gypsum board lamination machine is designed for surface decorative applications, including pasting and compounding decorative films and papers onto PVC baseboards, profiles, low foaming boards, and wood boards.

Technical Parameters

Model	LV-130FM03
Max. laminating width	1300mm
Thickness range	5-30mm
Max. laminating speed	15m/min
Speed regulation	Frequency conversion synchronous speed regulating
Installed power	22kw

PVC Gypsum Ceiling Tile Sizes

595×595×8.0 mm
603×603×8.0 mm
600×1200×8.0 mm

Automatic Board Loading Equipment

Two types of loading equipment available:

Name: Suction type board loading machine

Brand: LVJOE

Origin: China

This equipment uses single side suction to feed plasterboard into the next production stage, enabling continuous production without board damage. Features easy operation and reliable performance.

Technical Specifications

Board size: 1220×2440mm
Loading mode: Continuous unilateral vacuum loading
Loading speed: 6pcs/min
Power: 4KW, 380V
