Place of Origin: | Hebei , China (Mainland) |
Brand Name: | LVJOE |
Certification: | CE ISO 9001 |
Model Number: | 1300FM01 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines. |
Delivery Time: | 60 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 50 Sets Per Year |
Features: | Easy To Operate | Weight: | 3-30t |
---|---|---|---|
Voltage: | 380V | Dimension(L*W*H): | 12600*1950*1600 |
Driven Type: | PLC System | Warranty: | 1 Year |

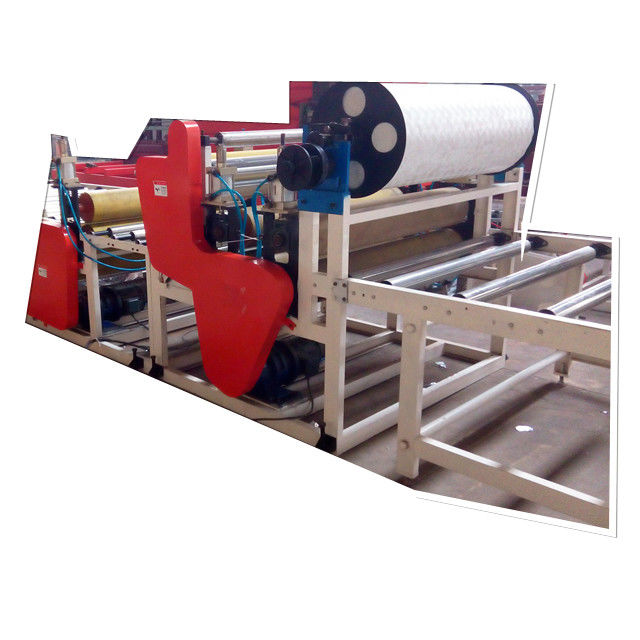

Interior House Design PVC Plaster Ceiling Panel Lamination Machine
Production Description
gypsum board lamination machine usage and features:
The machine is fit for the surface decorative materials, such as pasted and compound decorative film and
decorative paper,etc of the PVC baseboard, profile,low foaming board and wood board, etc.
Technical parameter:
Model | LV-130FM03 |
Max. laminating width | 1300mm |
Thickness of sheet | 5----30mm |
Max. Laminating Speed | 15m/min |
Speed Regulation | Frequency conversion synchronous speed regulating |
installed power | 22kw |
PVC Gypsum Ceiling Tile Size
Size(mm): 595*595 *8.0
603*603 *8.0
600*1200 *8.0
Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
Best regards
James Yang
ADD: 17th, NanYan Road Economical and Technological
Development Zone,Shijiazhuang City,Hebei,China
Mobile Phone:+8615832254694
WeChat:15832254694
E-mail:lvjoe3@greensontech.com
Automatic Board Loading Equipment
There are two types of this loading equipment for your choice.
Name: Suction type board loading machine
Brand: LVJOE
Original: China
This equipment adopts single side suction way to feed kinds of palsterboard into the next production step.
It can achieve the continous production without hurting the board. Eady to operate with reliable performance.
Technical specification:
Board size: 1220*2440mm
Loading mode: continuous unilateral vacuum loading
loading speed: 6pcs/min
Install power: 4KW, 380V
Contact Person: James Yang
Tel: +8615832254694
