High Capacity Double Sides Oil Resistance Plasterboard Lamination Machine

High Capacity Double Sides Oil Resistance Plasterboard Lamination Machine

Brand Name:	LVJOE
Model Number:	1300FM01
MOQ:	1 Set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China (Mainland)

Certification:

CE ISO9001

Features:

Easy To Operate

Weight:

3-30t

Driven Type:

PLC System

Voltage:

380V

Warranty:

1 Year

Dimension(L*W*H):

12600*1950*1600

Packaging Details:

Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.

Supply Ability:

50 Sets Per Year

Highlight:

heat shrink packing machine

full automatic shrink wrapping machine

Product Description

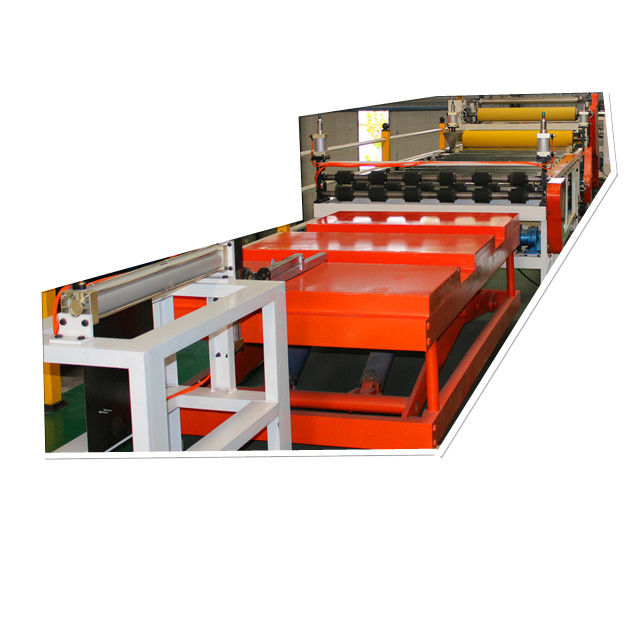

High Capacity Double Sides Oil Resistance Plasterboard Lamination Machine

Product Specifications

Feature	Specification
Operation	Easy To Operate
Weight	3-30t
Control System	PLC Driven
Voltage	380V
Warranty	1 Year
Dimensions (L×W×H)	12600×1950×1600 mm

Product Description

This high-capacity lamination machine applies PVC film to the front side and aluminum film to the back side of paper-faced gypsum boards, creating ceiling tiles with superior properties including:

Waterproof and moisture resistant
Flame resistant and thermal insulating
Radiation proof
Anti-sagging and deformation resistant

Technical Parameters

Model	LV-130FM01
Max. laminating width	1300mm
Sheet thickness range	5-30mm
Max. laminating speed	15m/min
Speed regulation	Frequency conversion synchronous speed regulating
Installed power	4kw

Standard Ceiling Tile Sizes

595×595×8.0 mm

603×603×8.0 mm

600×1200×8.0 mm

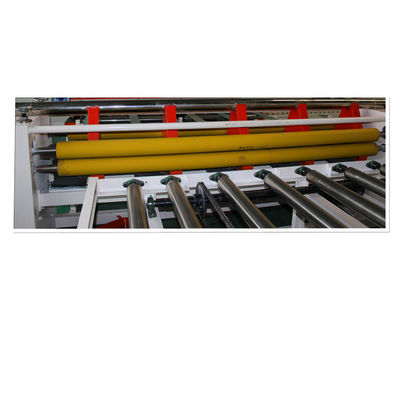

Coating System Parameters

Glue Coating Head
Diameter	180mm
Axial plane beating quantity	0.05mm
Glue Coating Steel Roller
Diameter	156mm
Axial plane beating quantity	0.004mm

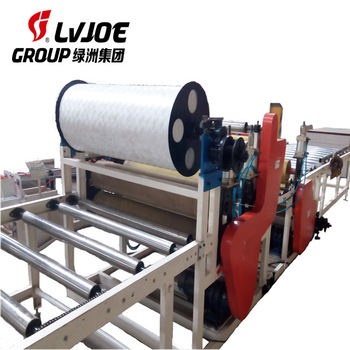

High capacity plasterboard production line for manufacturing 600×600mm ceiling tiles

Our Advantages

Competitive Pricing: Direct factory pricing with 15+ years of specialization in PVC laminated gypsum ceiling tile machinery
Superior Quality: Rigorous quality control processes
Comprehensive Service: Dedicated international trading team
Complete After-sales Support: Including installation, commissioning, and operator training
