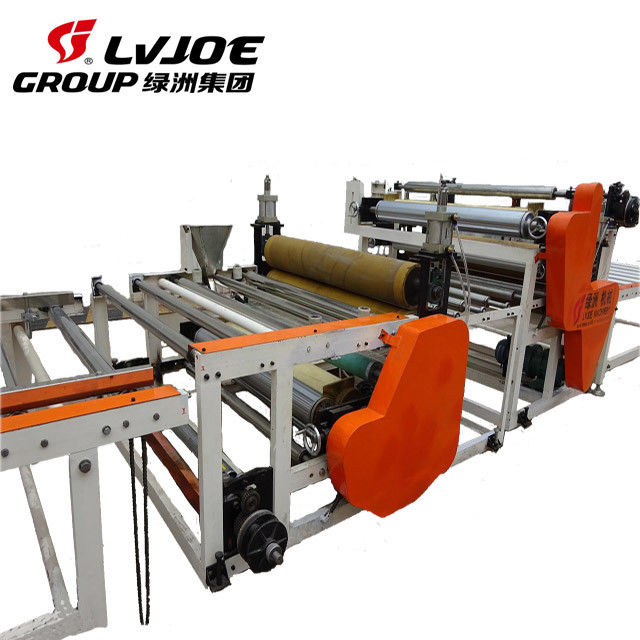

Automatic pvc film coating line

Automatic pvc film coating line

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

magnesium oxide board production line

gypsum ceiling production line

Product Description

Automatic PVC Film Coating Line

Product Specifications

Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

Product Description

Our gypsum board lamination system uses specialized technology to bond PVC film to paper-faced plasterboard through precise sticking and pressing processes. This creates unique visual effects ideal for personalized decorative applications.

Key Features

Environmentally friendly production process
Wide selection of patterns, textures, and colors
Dust-free, moisture-resistant, and mold-proof
Easy cleaning and maintenance
Simple operation requiring no secondary decoration

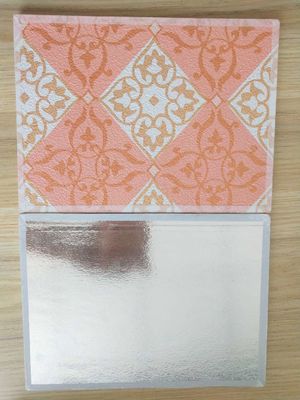

PVC film laminated gypsum boards offer waterproof, fireproof, and soundproof properties, making them ideal for ceiling and partition wall applications in commercial buildings, supermarkets, hospitals, theaters, and other public spaces.

Technical Overview

This advanced coating and laminating system utilizes the latest technology to bond functional or decorative films to various board materials through a fully synchronized process.

Technical Parameters

Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-6 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements.

Production Process Flow

Automatic board feeding → Pre dusting → Coating → Drying and conveying → Aluminium foil unwinding → Pneumatic lamination for film and gypsum board → Cutting → Conveying → Automatic overturn → Coating → Drying and conveying → PVC film unwinding → Pneumatic lamination for film and gypsum board → Cutting → Drying and conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Autolift stacking conveying → Stretch packing → Conveying → Lift (finished products stacking)

Core Equipment Components

Automatic Loading Device: Ensures continuous material feeding into the production line.

Lamination Machine: Bonds decorative film to boards through a precise process of dust collection, glue application, and pressure rolling.

Automatic Cutting Machine: Precisely cuts laminated gypsum boards to required dimensions through a two-stage cutting process.

Electrostatic Pulse Bag Style Dust Collector: Features large dust exhaust fan and pipes for efficient dust removal during cutting operations.

Automatic Overturn System: Enables dual-side processing of boards.

Automatic Stacking Machine: Organizes finished products for packaging.

Automatic Sealing & Packaging System: Uses shrink film technology for moisture-proof packaging of finished products.
