Brand Name: | LVJOE |
Model Number: | FM1300 |
MOQ: | 1 line |
Price: | US $20000-200000 |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 lines per year |
Attribute | Value |
---|---|
Application | Gypsum ceiling tile production |
Speed | 3-15m/min (adjustable) |
Laminate type | Single side or double side |
Power | 100KW |
Effective lamination width | 1300mm |
Board feeding/releasing mode | Automatic/manual |
Weight | 20T |
Voltage | 380V, 50HZ |
Our PVC gypsum ceiling tile is an environmentally friendly decorative board featuring a paper-faced core with PVC surface layer and aluminum foil backing. This innovative construction provides exceptional properties including:

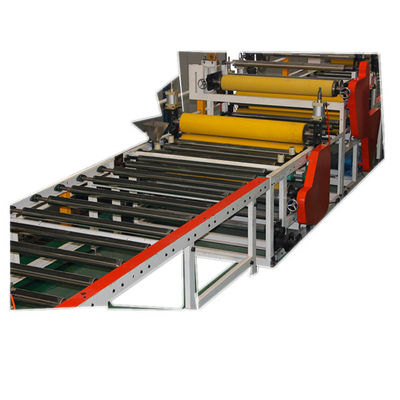

The gypsum board lamination machine operates in complete synchronization to laminate film onto gypsum boards with precision.
Capacity: 7,000-12,000m² per day (based on 595×595mm, 7mm thickness, 5.5 kg/m² weight)
Automation: Simple operation with high degree of automation
Materials: Gypsum board, PVC film, aluminum foil, PVC glue, aluminum glue
Product Dimensions: Available in 595×595mm, 600×600mm, 603×603mm, and 1200×600mm

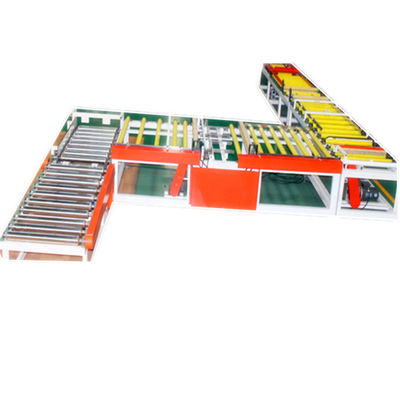

Automatic feeding → Dust cleaning → PVC film/aluminum foil laminating → Film cutting (manual/automatic) → Conveying → Vertical cutting (with dust collection) → Horizontal cutting (with dust collection) → Small board stacking → Edge sealing → Stretch packing → Finished product stacking
Parameter | Specification |
---|---|
Sheet thickness | 5-30mm |
Laminating speed | 15m/min |
Speed adjustment | Frequency conversion synchronous speed regulating |
Electrical control | PLC |
Annual capacity | 2-4 million m² |
Film materials | PVC film, aluminum foils, decorative materials |
Board materials | PVC baseboard, gypsum board, wood board, sectional board, PVC foam board |
