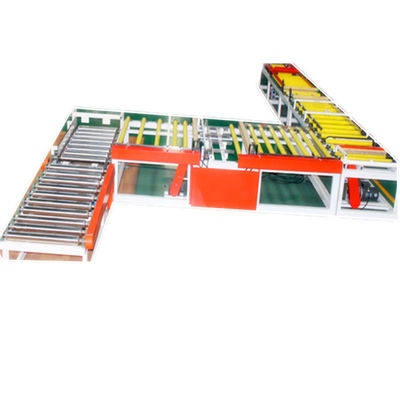

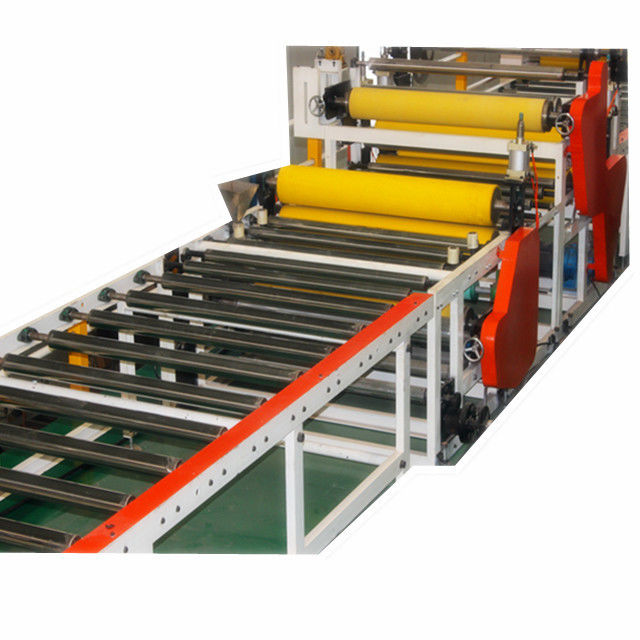

Automatic Gypsum Board Lamination Machine Equipment for Making Ceiling Tile

Automatic Gypsum Board Lamination Machine Equipment for Making Ceiling Tile

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO,CE

Application:

Make Gypsum Ceiling Tile

Speed:

3-15m/min(sdjustable)

Laminate Type:

Single Side Or Double Side

Power:

100KW

Effective Lamination Width:

1300mm

Board Feeding And Releaseing Mode:

Automatic/manual

Weight:

20T

Voltage::

380V. 50HZ

Packaging Details:

standard package

Supply Ability:

10 lines per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

Automatic Gypsum Board Lamination Machine for Ceiling Tile Production

Key Specifications

Attribute	Value
Application	Gypsum ceiling tile production
Speed	3-15m/min (adjustable)
Laminate type	Single side or double side
Power	100KW
Effective lamination width	1300mm
Board feeding/releasing mode	Automatic/manual
Weight	20T
Voltage	380V, 50HZ

High-Efficiency PVC Ceiling Tile Production

Our gypsum board lamination machine produces premium PVC ceiling tiles featuring a paper-faced gypsum board with PVC surface layer and aluminum foil backing. These environmentally friendly tiles offer:

Lightweight construction with excellent fireproof and waterproof properties
Corrosion-resistant decorative surface
Easy cleaning and customizable patterns
Ideal for demanding environments including hotels, shopping malls, offices, and industrial spaces

Production Capacity

Daily output: 7,000-12,000m² (based on 595×595×7mm board at 5.5kg/m²)

Key Features

Synchronous operation throughout the entire machine
Simple yet highly automated process
Handles standard materials: gypsum board, PVC film, aluminum foil, and adhesives
Produces multiple standard dimensions including 595×595mm, 600×600mm, and 1200×600mm

Lamination Process Flow

Automatic feeding → Dust cleaning → PVC film/aluminum foil lamination → Film cutting (manual/automatic) → Conveying → Vertical cutting (with dust collection) → Horizontal cutting (with dust collection) → Small board stacking → Edge sealing → Stretch packing → Finished product stacking

Technical Parameters

Parameter	Specification
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million m²
Compatible materials	PVC film, aluminum foils, decorative materials, PVC baseboard, gypsum board, wood board, etc.

Comprehensive Support Services

Professional installation and debugging teams ensure proper setup at your facility
One-year equipment warranty with year-round spare parts availability
Continuous technical support and problem resolution
Assistance with import/export procedures and documentation
Long-term cooperation with production engineering support when needed
