High Capacity PVC Lamination Machine For Gypsum Board 100KW Power

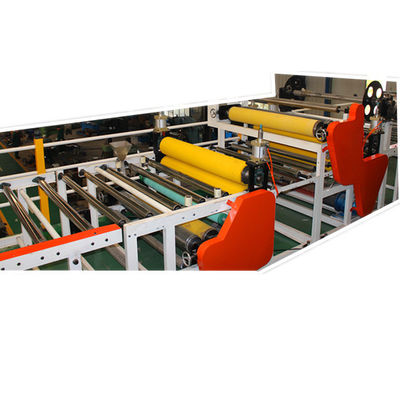

Our Gypsum Board Lamination Machine produces PVC ceiling tiles with high output capacity, offering excellent return on investment. The machine laminates film onto gypsum board in a synchronous operation.

PVC gypsum ceiling tiles feature a paper-faced board with PVC surface layer and aluminum foil backing. These environmentally friendly tiles are lightweight, fireproof, waterproof, and corrosion-resistant. With customizable patterns and easy cleaning, they are ideal for:

• Hotels, restaurants, and shopping malls
• Theaters, stations, and auditoriums
• Office buildings and living spaces
• Electronic computer rooms and precision instrument areas
• Industrial and residential interior decoration

Daily Output: 7,000-12,000 m² (based on 595×595mm, 7mm thickness, 5.5 kg/m² weight)

• Sheet thickness: 5-30mm
• Laminating speed: 15m/min
• Speed adjustment: Frequency conversion synchronous speed regulating
• Electrical control: PLC
• Annual capacity: 2-4 million m²
• Compatible materials: PVC film, aluminum foils, decorative materials
• Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

• Automatic feeding
• Dust cleaning
• PVC film and aluminum foil laminating
• Film cutting (manual/automatic)
• Conveying
• Vertical cutting with dust collection
• Horizontal cutting with dust collection
• Small board stacking
• Edge sealing
• Stretch packing
• Finished products stacking

• Professional installation and debugging teams to ensure proper operation
• One-year equipment guarantee with year-round accessory supply
• Continuous technical consultation and problem resolution
• Assistance with import/export procedures and consignment
• Production engineer support if needed, with potential for long-term cooperation
