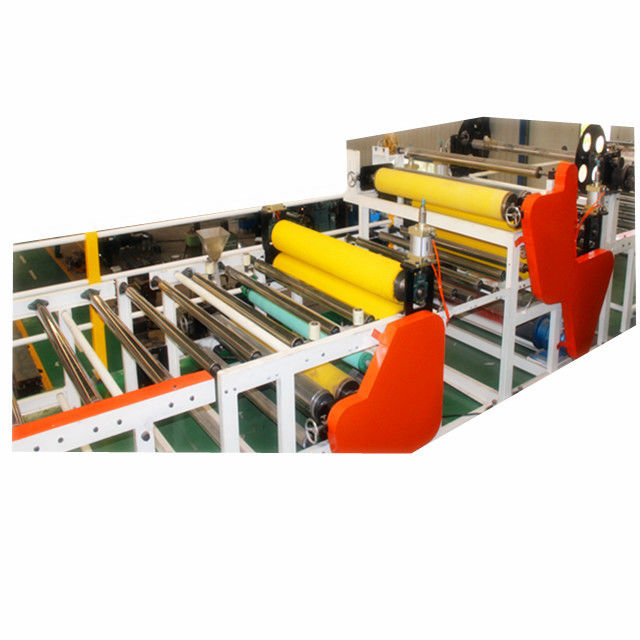

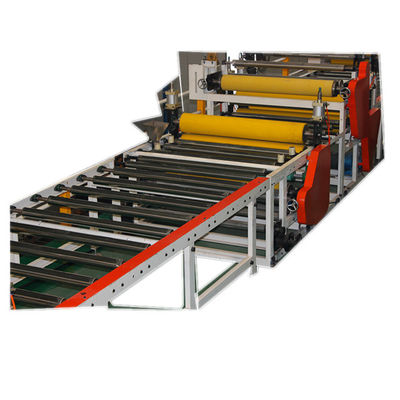

High Output Gypsum Board Lamination Machine For PVC Ceiling Tiles

High Output Gypsum Board Lamination Machine For PVC Ceiling Tiles

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO,CE

Application:

Make Gypsum Ceiling Tile

Speed:

3-15m/min(sdjustable)

Laminate Type:

Single Side Or Double Side

Power:

100KW

Effective Lamination Width:

1300mm

Board Feeding And Releaseing Mode:

Automatic/manual

Weight:

20T

Voltage::

380V. 50HZ

Packaging Details:

standard package

Supply Ability:

10 lines per year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

High Output Gypsum Board Lamination Machine For PVC Ceiling Tiles

Product Specifications

Attribute	Value
Application	Make gypsum ceiling tile
Speed	3-15m/min (adjustable)
Laminate type	Single side or double side
Power	100KW
Effective lamination width	1300mm
Board feeding and releasing mode	Automatic/manual
Weight	20T
Voltage	380V, 50HZ

Product Overview

Our gypsum board lamination machine produces high-quality PVC ceiling tiles with exceptional output capacity. These tiles feature a paper-faced board with PVC surface layer and aluminum foil backing, offering an environmentally friendly, lightweight solution with excellent fireproof, waterproof, and corrosion-resistant properties.

Key Features

Daily Capacity: 7000-12000m² (based on 595×595×7mm board)
Automation Level: Simple operation with high degree of automation
Material Compatibility: Works with gypsum board, PVC film, aluminum foil, and specialized adhesives
Product Dimensions: Customizable sizes including 595×595mm, 600×600mm, 603×603mm, and 1200×600mm

Lamination Process Flow

Automatic feeding

Dust cleaning

PVC film and aluminum foil laminating

Film cutting (manual/automatic)

Conveying

Vertical cutting with dust collection

Horizontal cutting with dust collection

Small board stacking

Edge sealing

Stretch packing

Finished products stacking

Technical Parameters

Parameter	Specification
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
