House Decorative PVC Gypsum Ceiling Tiles Make Machine 380V 50HZ Frequency

House Decorative PVC Gypsum Ceiling Tiles Make Machine 380V 50HZ Frequency

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

ISO,CE

Application:

Make Gypsum Ceiling Tile

Speed:

3-15m/min(sdjustable)

Laminate Type:

Single Side Or Double Side

Power:

100KW

Effective Lamination Width:

1300mm

Board Feeding And Releaseing Mode:

Automatic/manual

Weight:

20T

Voltage::

380V. 50HZ

Packaging Details:

standard package

Supply Ability:

10 lines per year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

House Decorative PVC Gypsum Ceiling Tiles Make Machine 380V 50HZ Frequency

Product Specifications

Attribute	Value
Application	Make gypsum ceiling tile
Speed	3-15m/min (adjustable)
Laminate type	Single side or double side
Power	100KW
Effective lamination width	1300mm
Board feeding and releasing mode	Automatic/manual
Weight	20T
Voltage	380V, 50HZ

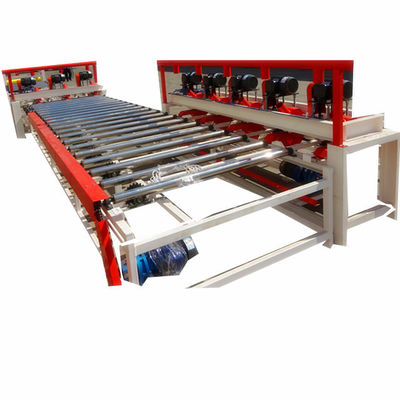

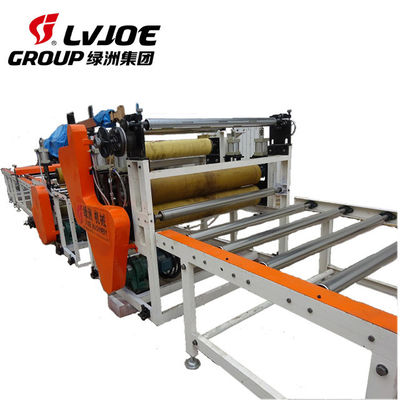

Economic Gypsum Board Lamination Machine

This high-performance machine produces PVC gypsum ceiling tiles with factory-direct pricing. The resulting tiles feature a paper-faced board with PVC surface layer and aluminum foil backing, creating an environmentally friendly, lightweight solution with excellent fireproof, waterproof, and corrosion-resistant properties.

Product Advantages

Easy to clean with customizable patterns
Ideal for high fireproof and waterproof requirements
Wide application in commercial and residential spaces
Suitable for hotels, restaurants, shopping malls, theaters, offices, and more

Double Sided Laminating Process

Automatic feeding

Dust cleaning

PVC film and aluminum foil laminating

Film cutting (manual/automatic)

Conveying

Vertical cutting (dust collecting)

Horizontal cutting (dust collecting)

Small board stacking

Edge sealing

Stretch packing

Finished products stacking

Technical Parameters

Parameter	Specification
Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
