Gypsum Ceiling Tile Production Line
Created with Pixso.

High Capacity Automatic Cutting Machine for PVC Ceiing Tiles Low Labor

Name

High Capacity Automatic Cutting Machine for PVC Ceiing Tiles Low Labor

Brand Name: LVJOE
Model Number: FM1300
MOQ: 2 set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 20 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China
Certification:
CE ISO
Application Size:
1220*2440mm Gypsum Board
Finished Board Size:
595*595mm 603*603mm
Power:
17.15KW
Speed:
15m/min
Control:
PLC
Blade Type:
TCT Blade And Diamond Blade
Packaging Details:
Standard package
Supply Ability:
20 sets per year
Highlight:

gypsum board feeding machine

,

gypsum board hurting machine

Product Description

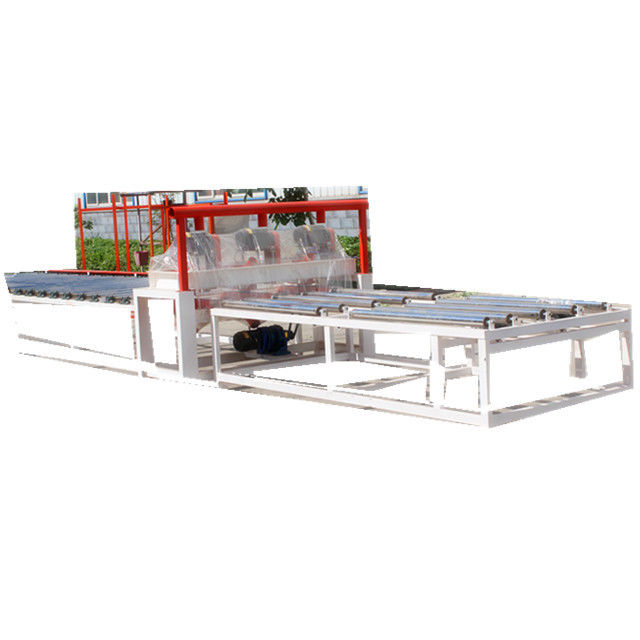

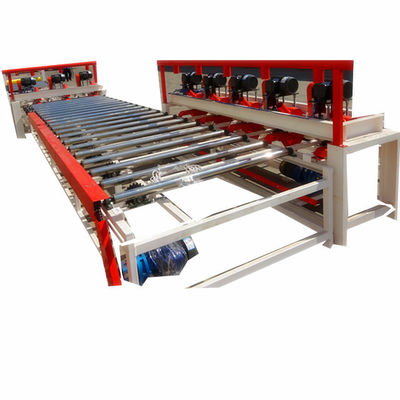

High Capacity Automatic Cutting Machine for PVC Ceiling Tiles - Low Labor Operation
Key Specifications
Attribute Value
Application size 1220×2440mm gypsum board
Finished board size 595×595mm / 603×603mm
Power 17.15KW
Speed 15m/min
Control PLC
Blade type TCT blade and diamond blade
Product Overview

Our high-capacity automatic cutting machine efficiently processes PVC ceiling tiles with minimal labor requirements. The system features dual cutting mechanisms (vertical/longitudinal and horizontal) and includes an integrated dust collector for clean operation.

Key Features
  • Converts 1.2×2.4m boards into 603×603mm or 595×595mm finished tiles
  • Advanced dust collection system with electronic impulse technology
  • Cutting configuration: 3 vertical blades and 5 horizontal blades
  • Total system power: 17.15KW
  • PLC-controlled operation for precision cutting
Technical Parameters
Effective laminating width 1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-4 million Sq.m
Material Compatibility

This cutting machine processes various materials including:

  • PVC baseboard
  • Gypsum board
  • Wood board
  • Sectional board
  • PVC foam board
PVC Gypsum Ceiling Tile Applications

PVC gypsum ceiling tiles are environmentally friendly, lightweight, and feature fireproof, waterproof, and corrosion-resistant properties. Ideal for:

  • Commercial spaces (hotels, restaurants, shopping malls)
  • Public venues (theaters, stations, auditoriums)
  • Office buildings and residential interiors
  • Specialized environments (computer rooms, precision instrument rooms)
