PVC Gypsum Ceiling Tile in Zimbabwe by Automatic Productinon Line with High Output

PVC Gypsum Ceiling Tile in Zimbabwe by Automatic Productinon Line with High Output

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10lines/ year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei Province, China

Certification:

CE ISO

Name:

Gypsum Board Lamination Machine

Advantages:

High Output, Economic

Capacity:

2 Million/year

Max Laminating Wid:

1300mm

Laminating Type:

Single Side And Double Side

Warranty:

1 Year

Packaging Details:

Standard size

Supply Ability:

10lines/ year

Highlight:

building materials machinery

gypsum ceiling production line

Product Description

PVC Gypsum Ceiling Tile in Zimbabwe by Automatic Production Line with High Output

Product Specifications

Attribute	Value
Name	Gypsum board Lamination Machine
Advantages	High output, economic
Capacity	2 million/year
Max laminating width	1300mm
Laminating type	Single side and double side
Warranty	1 year

Product Overview

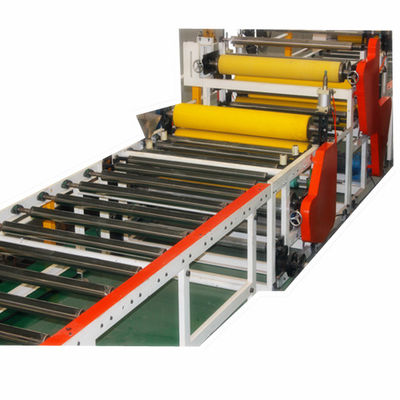

The Gypsum Board Lamination Machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board to create ceiling tiles and partition wall panels.

This machine produces durable, non-toxic construction materials that help regulate indoor temperature while maintaining human health. The finished products are ideal green building materials commonly used in public spaces like shopping malls and stations.

Technical Specifications

Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Key Features

Capacity: 7000-12000m² per day (based on 595×595mm, 7mm board)
Automation: Simple operation with high degree of automation
Main materials: Gypsum board, PVC film, aluminum foil, and specialized adhesives
Product dimensions: Various sizes including 595×595mm, 600×600mm, 603×603mm, 1200×600mm with thickness options from 7.0mm to 9.0mm
