Automatic PVC Film Laminated Machine for Housr Decorative Construction

Automatic PVC Film Laminated Machine for Housr Decorative Construction

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10lines/ year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei Province, China

Certification:

CE ISO

Name:

Gypsum Board Lamination Machine

Advantages:

High Output, Economic

Capacity:

2 Million/year

Max Laminating Wid:

1300mm

Laminating Type:

Single Side And Double Side

Warranty:

1 Year

Packaging Details:

Standard size

Supply Ability:

10lines/ year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

Automatic PVC Film Laminated Machine for House Decorative Construction

Product Specifications

Attribute	Value
Name	Gypsum Board Lamination Machine
Advantages	High output, economic
Capacity	2 million/year
Max laminating width	1300mm
Laminating type	Single side and double side
Warranty	1 year

Product Description

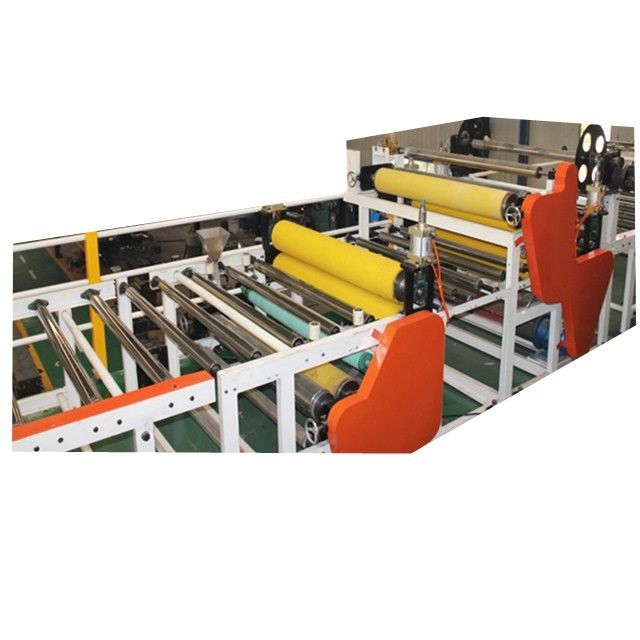

The Gypsum Board Lamination Machine laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

This machine produces durable, non-toxic construction materials that help regulate indoor temperature while promoting human health. The resulting products are ideal green building materials commonly used in public spaces like shopping malls and stations.

Technical Specifications

Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Key Features

Capacity: 7000-12000m² per day (based on standard board dimensions)
Automation: Simple operation with high degree of automation
Main materials: Gypsum board, PVC film, aluminum foil, specialized adhesives
Product dimensions: Various standard sizes available (595×595mm to 1200×600mm) with thickness options from 7.0mm to 9.0mm
