Full Automatic Plasterboard Laminating Machine with Factory Price

Full Automatic Plasterboard Laminating Machine with Factory Price

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C,T/T
Supply Ability:	10lines/ year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei Province, China

Certification:

CE ISO

Name:

Gypsum Board Lamination Machine

Advantages:

High Output, Economic

Capacity:

2 Million/year

Max Laminating Wid:

1300mm

Laminating Type:

Single Side And Double Side

Warranty:

1 Year

Packaging Details:

Standard size

Supply Ability:

10lines/ year

Highlight:

magnesium oxide board production line

gypsum ceiling production line

Product Description

Full Automatic Plasterboard Laminating Machine with FactoryPrice

Production description:

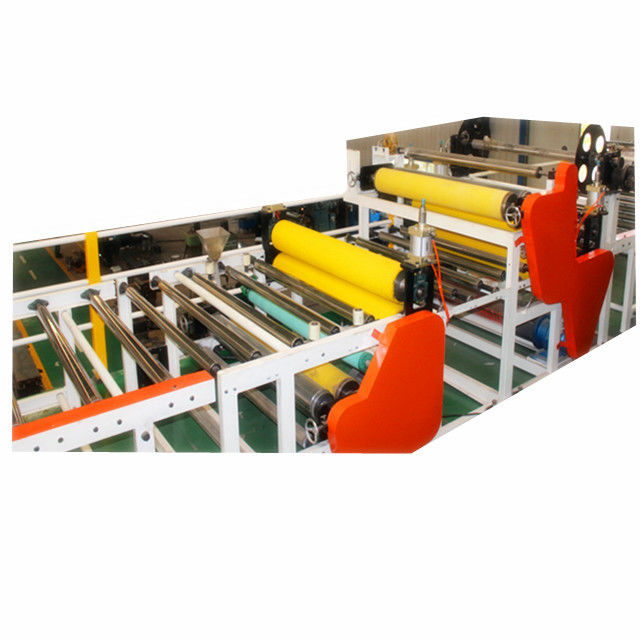

Gypsum board lamination machine is to laminate fiber glass, paper, PVC film and aluminum foil on gypsum board,the finished products can be used as ceiling tile and partition wall panel.
Gypsum Board Laminating Machine is not only well- shaped, high intensity, durable in use, non-poisonous, but also good for adjusting inside room temperature, and keeping health for human being. No doubt it is an ideal green construction material, which is commonly used in public area, such as shopping mall, station. It is not a kind of art, but excel as art. elegant in design, unique in pattern.

Effective laminating width	1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment way	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material, etc.
Board sheet material	PVC baseboard, gypsum board, wood board,sectional board, PVC foam board,etc

1.Capacity:
7000-12000m2 per day

(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/M2, for 7mm board)
2.Automation
simple and high degree automatic
3.Main materials
Gypsum board , PVC film, aluminum foil, glue for PVC, glue for aluminum

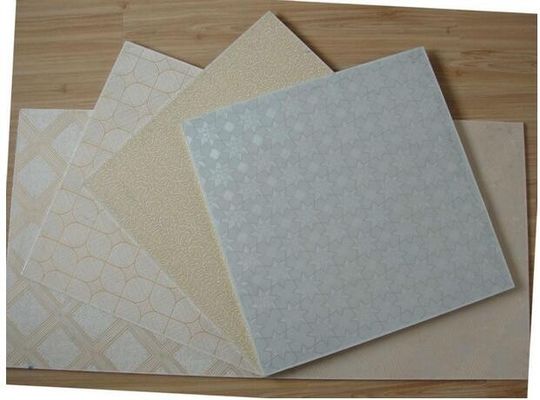

4.Dimension of product
Length*Width:595*595mm,600*600mm,603*603mm,1200*600mm
Thickness:7.0mm, 7.5mm, 8.0mm,8.5mm 9.0mm
