Sheet Perforation Machine
Created with Pixso.

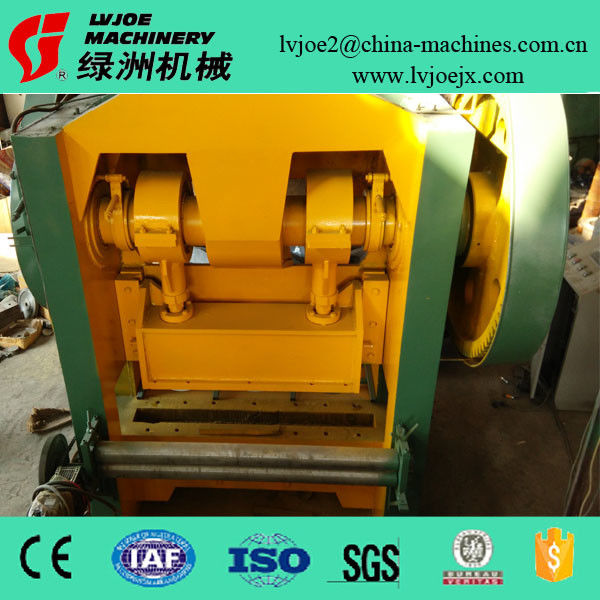

PVC Gypsum Ceiling Tiles Acoustic Machinery Small Business Ideas

Name

PVC Gypsum Ceiling Tiles Acoustic Machinery Small Business Ideas

Brand Name: LVJOE
Model Number: LV-CK01
MOQ: 1 set
Price: US $20000-80000
Supply Ability: 50 sets per year
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE SGS
Pressure:
80T, 160T, 200T
Usage:
Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Holes:
Round, Square
Automatic Level:
High Automatic
Thickness:
Max. 20mm
Packaging Details:
PE film wrapped
Supply Ability:
50 sets per year
Highlight:

metal sheet perforation machine

,

perforated sheet making machine

Product Description
PVC Gypsum Ceiling Tiles Acoustic Machinery
Product Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications

This perforation machine is designed for creating holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.

Contact: +8618032163245
Email: lvjoe2@china-machines.com.cn
Finished Product Example
PVC Gypsum Ceiling Tiles Acoustic Machinery Small Business Ideas 0
