Gypsum Ceiling Tile Production Line
Created with Pixso.

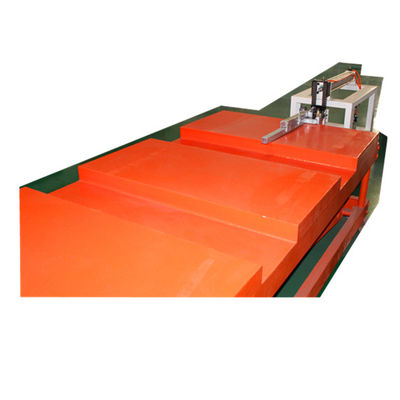

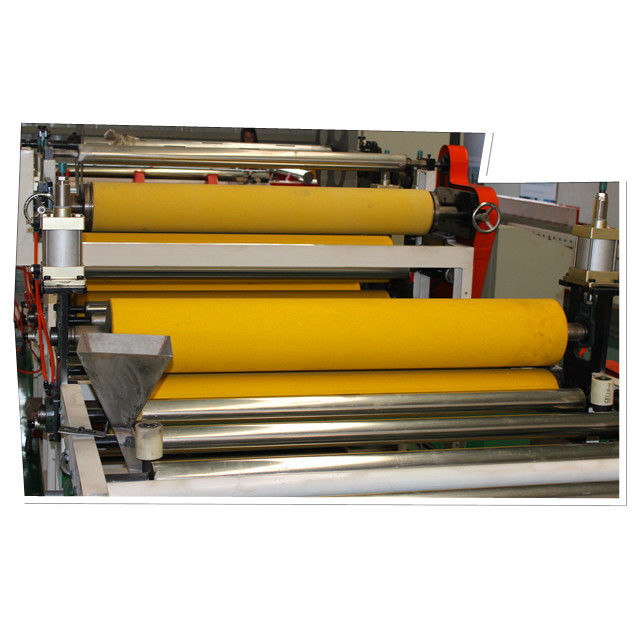

Decorative Waterproof False Ceiling PVC Film Small Cost Lamination Machine

Name

Decorative Waterproof False Ceiling PVC Film Small Cost Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM02
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Weight:
3-30t
Voltage:
380V
Warranty:
1 Year
Driven Type:
PLC System
Dimension(L*W*H):
12600*1950*1600
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

magnesium oxide board production line

,

gypsum ceiling production line

Product Description
Decorative Waterproof False Ceiling PVC Film Small Cost Lamination Machine
Product Specifications
Attribute Value
Weight 3-30t
Voltage 380V
Features Easy To Operate
Warranty 1 Year
Driven Type PLC System
Dimension (L*W*H) 12600*1950*1600
Technical Parameters
Model LV--1300FM01 LV--1300FM02 LV--1300FM03
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 8kw 10kw 22kw
Applications

Gypsum ceiling board is laminated with PVC film on the front side and aluminum film on the back side of paper-faced gypsum board.

  • Waterproof and moisture proof
  • Flame resistant and thermal insulation
  • Radiation proof
  • Anti-sagging and non-deformed
Thermoplastic Packing Machine Specifications
  • Power: 23KW, 380V
  • Speed: 500 packs/hour
  • Standard packing temperature: 160-180°C
  • Suitable film: PE, PUT
Decorative Waterproof False Ceiling PVC Film Small Cost Lamination Machine 0
Company Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, is a large manufacturer specializing in plasterboard machinery. We are a HEBEI province municipal civilized and creditable unit, with high-tech enterprise certification, national patent licenses, CE quality system certification, and ISO9001 quality system certification.

Contact Information

Contact: James Yang

Address: 17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China

Mobile: +8615832254694

WeChat: 15832254694

Email: lvjoe3@greensontech.com
