Gypsum Ceiling Tile Production Line
Created with Pixso.

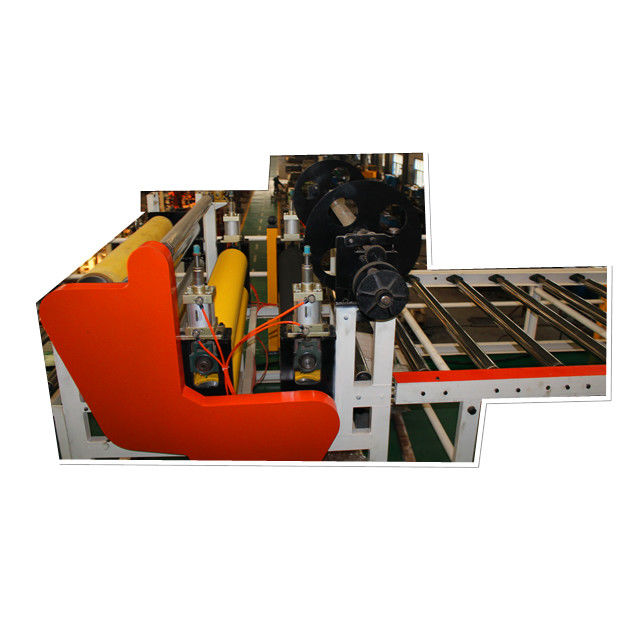

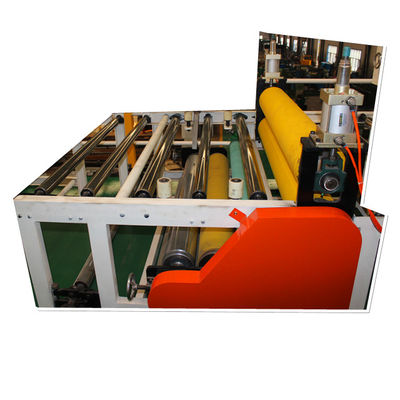

Efficient PVC Film 595*595mm Gypsum Board Lamination Machine

Name

Efficient PVC Film 595*595mm Gypsum Board Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM02
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Driven Type:
PLC System
Warranty:
1 Year
Voltage:
380V
Weight:
3-30t
Dimension(L*W*H):
12600*1950*1600
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

magnesium oxide board production line

,

gypsum ceiling production line

Product Description
Efficient PVC Film 595*595mm Gypsum Board Lamination Machine
Product Specifications
Attribute Value
Driven Type PLC System
Warranty 1 Year
Voltage 380V
Features Easy To Operate
Weight 3-30t
Dimension (L*W*H) 12600*1950*1600
Technical Parameters
Parameter Value
Effective laminating width ≤1300mm
Sheet thickness 5-30mm
Laminating speed 15m/min
Speed adjustment Frequency conversion synchronous speed regulating
Electrical control PLC
Annual capacity 2-4 million Sq.m
Material Compatibility

Film Materials: PVC film, aluminum foils, decorative materials

Board Materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements.

Standard Gypsum Ceiling Tile Sizes
Size (mm)
595*595*8.0
603*603*8.0
600*1200*8.0
Product Features
  • Waterproof and moisture resistant
  • Flame resistant and thermal insulation
  • Radiation proof and anti-sagging
  • Maintains shape without deformation
  • Front side laminated with PVC film
  • Back side laminated with aluminum film
Automatic Push-Type Board Loading Machine

Cylinder push system with photoelectric control (max cylinder range 700mm). Features include:

  • Rubber roller rolling transmission for accelerated speed
  • Low cost operation
  • Easy to operate with fully automatic feeding
  • Max load-bearing: 3000kg
  • Route: 1500mm
  • Height range: 620mm-2000mm
  • Platform size: 1220*2440mm
  • Hydraulic pressure station power: 4kw
Efficient PVC Film 595*595mm Gypsum Board Lamination Machine 0
Company Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, specializes in research, manufacturing, and trading of plasterboard machinery. Our certifications include:

  • HEBEI province municipal civilized and creditable unit
  • High-tech enterprise certificate
  • National patent licenses
  • CE quality system certification
  • ISO9001 quality system certification
