Gypsum Ceiling Tile Production Line
Created with Pixso.

Small Business Ideas Semi-automatic PVC And Aluminum Film Lamination Machine

Name

Small Business Ideas Semi-automatic PVC And Aluminum Film Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM02
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Driven Type:
PLC System
Weight:
3-30t
Warranty:
1 Year
Dimension(L*W*H):
12600*1950*1600
Voltage:
380V
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

building materials machinery

,

gypsum ceiling production line

Product Description

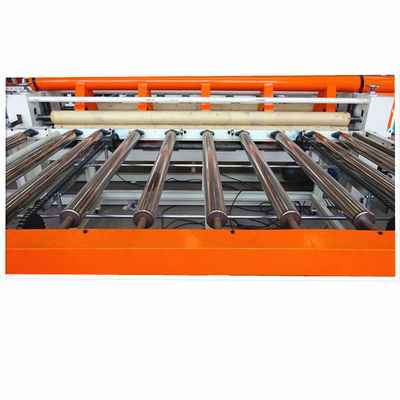

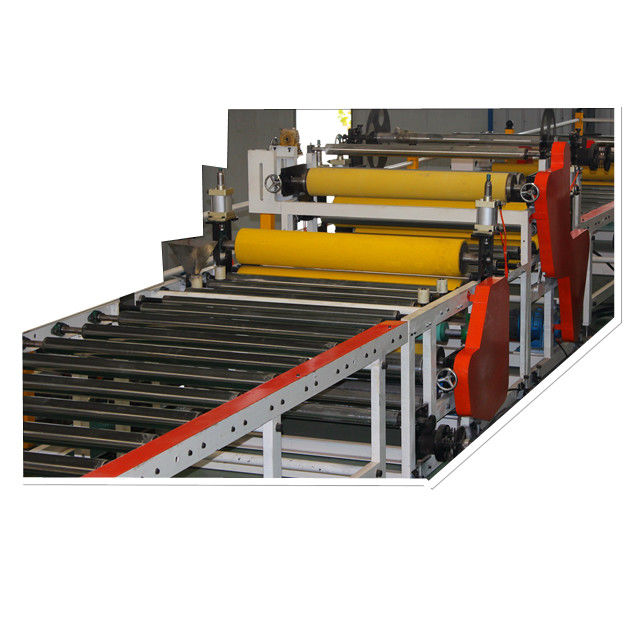

Semi-automatic PVC and Aluminum Film Lamination Machine for Small Businesses
Product Specifications
Attribute Value
Driven Type PLC System
Weight 3-30t
Warranty 1 Year
Features Easy To Operate
Dimension (L×W×H) 12600×1950×1600 mm
Voltage 380V
Technical Parameters
Model LV-1300FM01 LV-1300FM02 LV-1300FM03
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 8kw 10kw 22kw
Applications

This machine laminates PVC film on the front side and aluminum film on the back side of paper-faced gypsum board, creating ceiling panels with exceptional features:

  • Waterproof and moisture resistant
  • Flame resistant and thermal insulation
  • Radiation protection
  • Anti-sagging and non-deforming
Automatic Sealing Machine

This gypsum board ceiling decoration edging equipment features:

  • PLC photoelectric automatic control
  • High speed and high capacity operation
  • Produces tight and firm edging
Small Business Ideas Semi-automatic PVC And Aluminum Film Lamination Machine 0
Manufacturer Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, is a leading manufacturer specializing in plasterboard machinery. Our credentials include:

  • HEBEI province municipal civilized and creditable unit
  • High-tech enterprise certification
  • National patent licenses
  • CE quality system certification
  • ISO9001 quality system certification
Contact: James Yang
Address: 17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China
Mobile: +8615832254694
WeChat: 15832254694
Email: lvjoe3@greensontech.com
