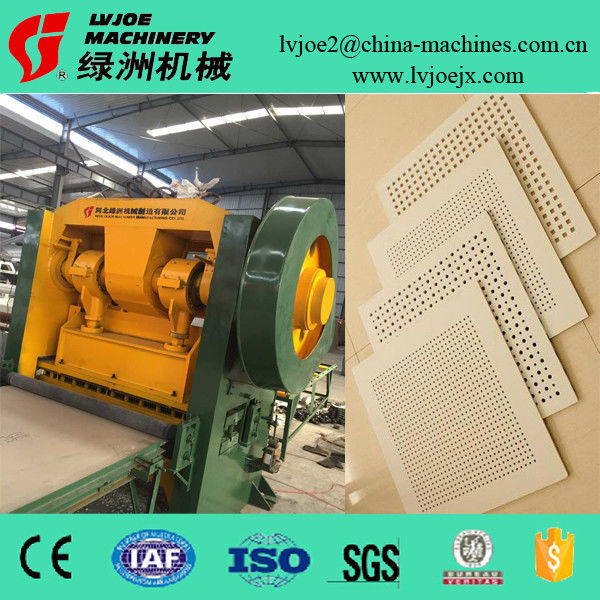

Advanced Hole Punching Sheet Perforation Machine for Gypsum Ceiling Board

Advanced Hole Punching Sheet Perforation Machine for Gypsum Ceiling Board

Advanced Hole Punching Sheet Perforation Machine for Gypsum Ceiling Board

Product Details:

Place of Origin: China
Brand Name: LVJOE
Certification: ISO CE SGS
Model Number: LV-CK01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: PE film wrapped
Delivery Time: 30 days
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Pressure: 80T, 160T, 200T Usage: Gypsum Board, MDF, HPL, Fiber Cement Board Perforation
Holes: Round, Square Automatic Level: High Automatic
Thickness: Max. 20mm

Soundproof Acoustical Gypsum Ceiling Panel Making Machinery Perforating Machine





Technical data:

1. Punching pressure: 200 ton

2. Stroke: 30 mm

3. Max mold height closed: 260mm.

4. Number of strokes: 50 times/minute

5. Slide surface: 210*1100mm

6. Working table: 300*1670mm

7. Spacing of both pole: 1350mm (load the max board width 1220mm)

8. Power of main motor: 22kw Power of servo motor:2.6kw(brand: Zhejiang yifeng)

9. Feeding accuracy: ±1mm

10. Maximum feeding rate: 100mm

11. Maximum feeding thickness: 20mm

12. Gross weight of machine: 11000kg

13. Overall dimension: 2300*1500*2300(H*L*W)



Usage



This perforation machine is used to perforate holes in the gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, metal sheet.
You can choose the shape of the hole as your requirement, about the operation, our worker can teach you how to use it.



Finished Products



Advanced Hole Punching Sheet Perforation Machine for Gypsum Ceiling Board



Our products range:

PVC gypsum ceiling board production line,

Perforation machine

MgO board production line

Mineral fiber board production line
