Gypsum Board Wall Panel PVC Film And Aluminum Foil Lamination Machine

Gypsum Board Wall Panel PVC Film And Aluminum Foil Lamination Machine

Brand Name:	LVJOE
Model Number:	1300FM01
MOQ:	1 Set
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei , China (Mainland)

Certification:

CE ISO 9001

Features:

Easy To Operate

Warranty:

1 Year

Driven Type:

PLC System

Voltage:

380V

Weight:

3-30t

Dimension(L*W*H):

12600*1950*1600

Packaging Details:

Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.

Supply Ability:

50 Sets Per Year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

Gypsum Board Wall Panel PVC Film And Aluminum Foil Lamination Machine

Product Specifications

Attribute	Value
Warranty	1 Year
Driven Type	PLC System
Voltage	380V
Features	Easy To Operate
Weight	3-30t
Dimension (L×W×H)	12600×1950×1600

Key Features

Easy to install and dismantle
Available in full-automatic and semi-automatic configurations
Energy efficient design reduces operational costs
Fast production delivery times

Technical Parameters

Effective laminating width	≤1300mm
Sheet thickness	5-30mm
Laminating speed	15m/min
Speed adjustment	Frequency conversion synchronous speed regulating
Electrical control	PLC
Annual capacity	2-4 million Sq.m
Compatible film materials	PVC film, aluminum foils, decorative materials
Compatible board materials	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements.

Applications

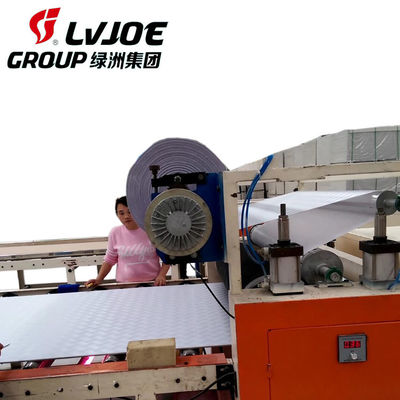

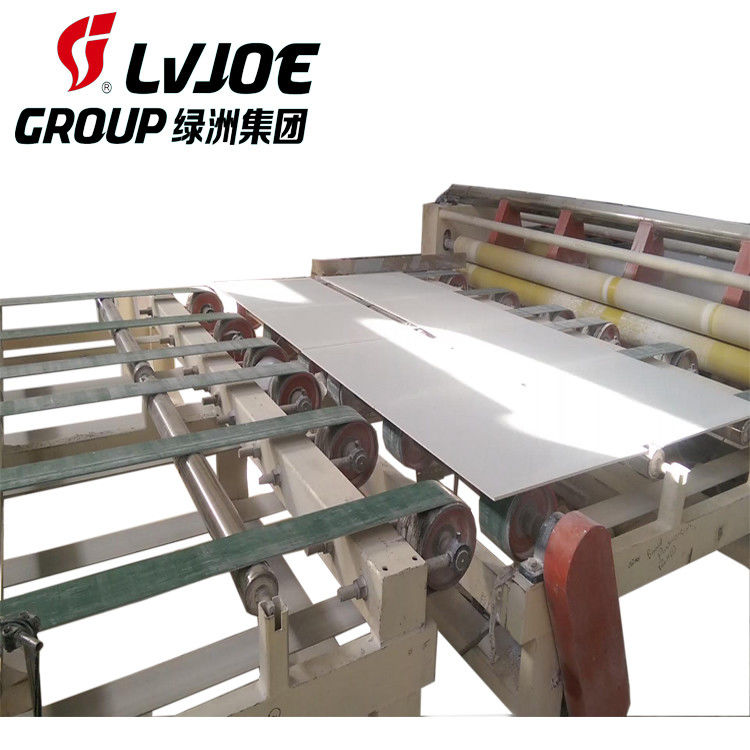

This laminating machine is designed for applying surface decorative materials including PVC films, decorative papers, and aluminum foils to various board materials. It is particularly suitable for producing gypsum ceiling boards with PVC film on the front side and aluminum foil on the back side of paper-faced gypsum boards.

Customer Support

Professional installation and debugging teams available for on-site setup
Comprehensive one-year warranty with ongoing spare parts support
Year-round technical consultation and problem resolution
Assistance with import/export documentation and procedures
Long-term technical cooperation available, including engineer dispatch if needed
