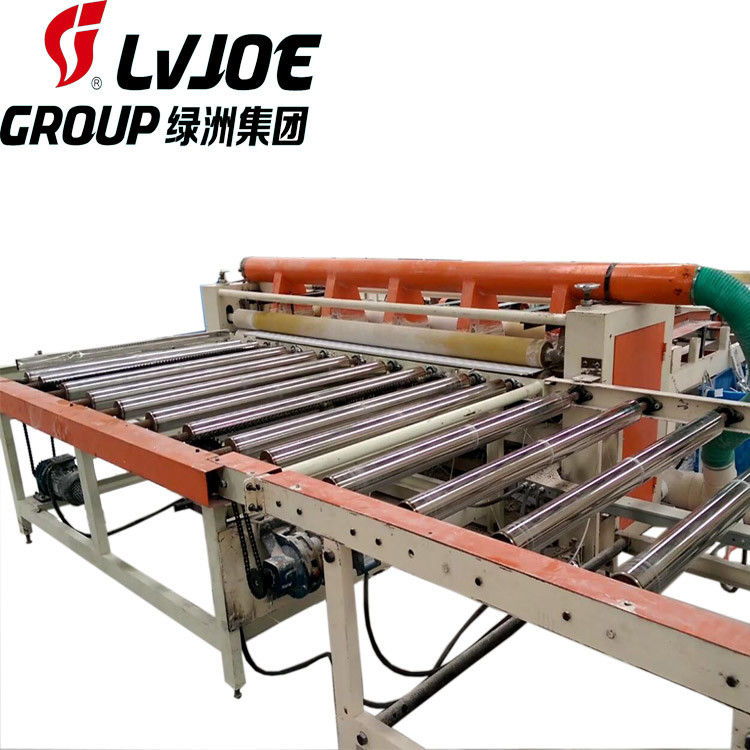

Automatic acoustic wall panel making machine

Automatic acoustic wall panel making machine

Brand Name:	LVJOE
Model Number:	Lvjoe-FM
MOQ:	1 line
Price:	US $20000-200000
Supply Ability:	10 line per year

Detail Information

Product Description

Detail Information

Place of Origin:

Shijiazhuang, Hebei province

Certification:

ISO CE

Raw Material:

Gypsum Board, PVC Film, Aluminum Foil, Glue

Condition:

New

Capacity:

2-6 Million Sqm

Original:

Hebei Province

Effective Laminating Width:

1300mm

Laminating Speed:

15m/min

Packaging Details:

PE film packing

Supply Ability:

10 line per year

Highlight:

magnesium oxide board production line

building materials machinery

Product Description

Automatic Acoustic Wall Panel Making Machine

Product Specifications

Raw Material	Gypsum board, PVC film, aluminum foil, glue
Condition	New
Capacity	2-6 million sqm
Origin	Hebei province
Effective Laminating Width	1300mm
Laminating Speed	15m/min

Product Description

Our gypsum board lamination machine applies special technology to laminate film onto paper-faced plasterboard through precise sticking and pressing processes. The resulting panels offer unique visual effects ideal for personalized decoration needs.

Key Features

Environmentally friendly production process
Wide variety of patterns, textures, and colors available
Dust-free, moisture-proof, and mold-resistant properties
Easy cleaning and maintenance
Simple operation requiring no secondary decoration

PVC film laminated gypsum boards provide excellent waterproof, fireproof, and soundproof characteristics. These versatile panels are widely used in ceilings and partition walls across commercial buildings, supermarkets, hospitals, movie theaters, and other public spaces.

Technical Overview

This advanced machine incorporates the latest coating and laminating technologies to bond functional or decorative films with board substrates through a fully synchronized process.

Technical Parameters

Effective Laminating Width: 1300mm

Sheet Thickness: 5-30mm

Laminating Speed: 15m/min

Speed Adjustment: Frequency conversion synchronous speed regulating

Electrical Control: PLC

Annual Capacity: 2-6 million Sq.m

Film Materials: PVC film, aluminum foils, decorative materials

Board Materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board

Custom configurations available to meet specific customer requirements.

Production Process Flow

Automatic board feeding → Pre-dusting → Coating → Drying/conveying → Aluminum foil unwinding → Pneumatic film/board lamination → Cutting → Conveying → Automatic overturn → Coating → Drying/conveying → PVC film unwinding → Pneumatic lamination → Cutting → Drying/conveying → Lengthwise cutting → Horizontal cutting → Belt conveyor output → Auto-lift stacking → Stretch packing → Conveying → Finished product stacking

Core Equipment Components

Automatic Loading Device: Ensures consistent material feed into the production line.

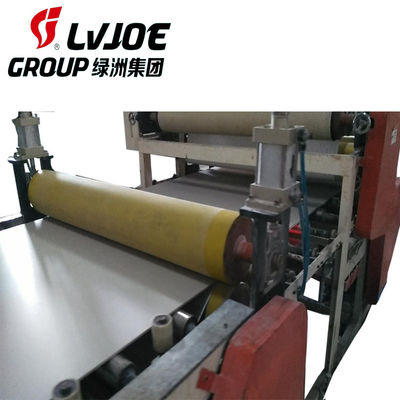

Lamination Machine: Precisely bonds decorative films to boards through dust collection, glue application, and multi-stage roller pressing.

Automatic Cutting Machine: Accurately sizes laminated boards for decoration applications using dual cutting systems.

Dust Collector: High-efficiency electrostatic pulse bag system with large exhaust fan for clean operation.

Automatic Overturn System: Enables two-sided processing without manual intervention.

Stacking & Packaging Systems: Includes automatic stacking, sealing, and heat-shrink packaging for moisture protection.
