Fully Automatic Lamination Machine
Created with Pixso.

Fully automatic PVC Film Plasterbaord Double Side Laminating Machine

Name

Fully automatic PVC Film Plasterbaord Double Side Laminating Machine

Brand Name: LVJOE
Model Number: 1300FM02
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Warranty:
1 Year
Dimension(L*W*H):
12600*1950*1600
Weight:
3-30t
Driven Type:
PLC System
Voltage::
380V
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description

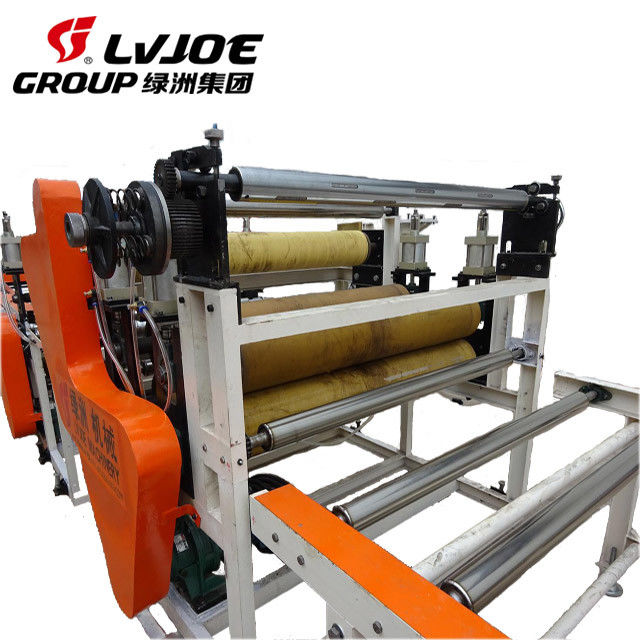

Fully Automatic PVC Film Plasterboard Double Side Laminating Machine
Product Specifications
Features Easy To Operate
Warranty 1 Year
Dimension (L×W×H) 12600×1950×1600 mm
Weight 3-30t
Driven Type PLC System
Voltage 380V
Technical Parameters
Model LV-130FM02
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 11kw
Applications

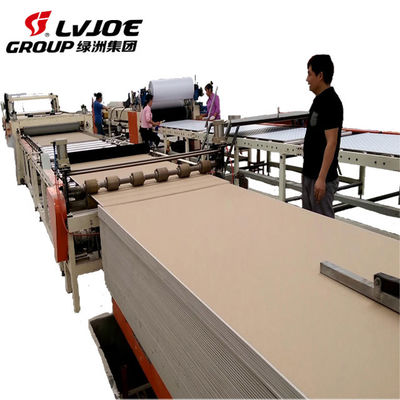

This machine laminates PVC film on the front side and aluminum film on the back side of paper-faced gypsum board. The resulting product features:

  • Waterproof and moisture proof
  • Flame resistant
  • Thermal insulation
  • Radiation proof
  • Anti-sagging and non-deformed
Fully automatic PVC Film Plasterbaord Double Side Laminating Machine 0
Manufacturer Information

HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, is a large manufacturer specializing in research, production, and trade of plasterboard machinery. Our certifications include:

  • HEBEI province municipal civilized and creditable unit
  • High-tech enterprise certificate
  • National patent licenses
  • CE quality system certification (EU)
  • ISO9001 quality system certification
James Yang
ADD: 17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China
Mobile Phone: +8615832254694
WeChat: 15832254694
E-mail: lvjoe3@greensontech.com
