Most Popular Laminating Gypsum Board Machine / Full automatic Production Line

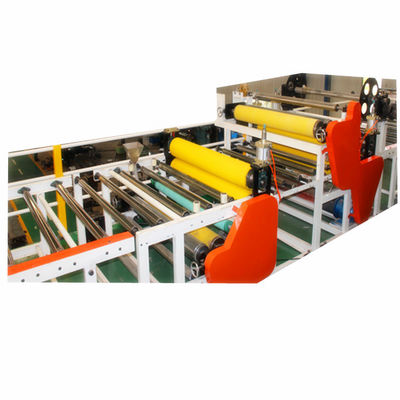

The gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are used as ceiling tiles and partition wall panels.

• Automatic board feeding
• Pre dusting
• Coating
• Drying and conveying
• Aluminum foil unwinding
• Pneumatic lamination for film and gypsum board
• Cutting
• Conveying
• Automatic overturn
• Coating
• Drying and conveying
• PVC film unwinding
• Pneumatic lamination for film and gypsum board
• Cutting (manual/automatic)
• Drying and conveying
• Lengthwise cutting
• Horizontal cutting
• Belt conveyor output
• Autolift stacking conveying
• Stretch packing
• Conveying
• Lift (finished products stacking)

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

• Max. Load-bearing: 3000kg
• Stroke: 1500mm
• Min. Height: 620mm
• Max. Height: 2000mm
• Platform size: 1200*2400mm

Consists of two cutting systems (vertical/longitudinal and horizontal) with dust collector system. Cuts 1.2*2.4m boards into 603*603mm/595*595mm sizes.

• Cutting speed: 15m/min
• Cutting knives: vertical/longitudinal - 3 blades; horizontal - 5 blades
• Overall power: 17.15KW

• Sheet thickness: 5-30mm
• Speed adjustment: Frequency conversion synchronous speed regulating
• Annual capacity: 2-4 million Sq.m
• Film material: PVC film, aluminum foils, decorative material, etc.
• Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board, etc.
• Stacking mode: 10 layers (4 packages/layer)
• Cutting mode: lengthways - 3 blades, horizontal - 5 blades
• Overall dimension: length - 56000mm, width - 9200mm
• Lamination mode: Double side (front and back simultaneously) or single side
