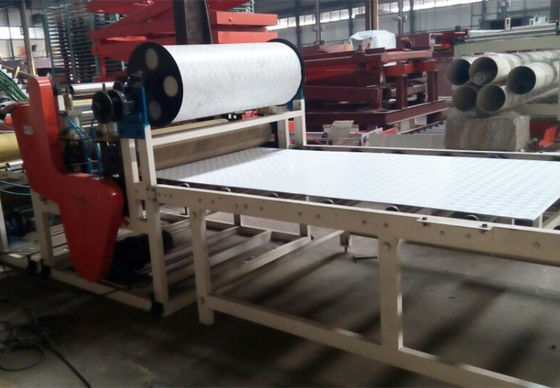

House Interior PVC Laminated Decoration Ceiling Board Production Line

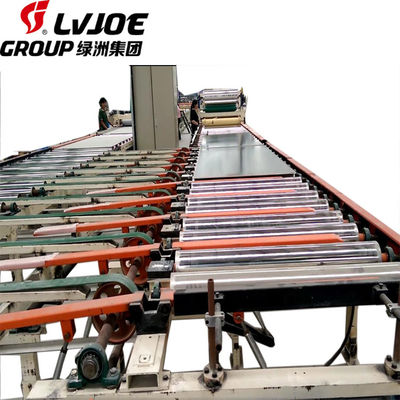

Gypsum Board Double Sides Laminating Machine for Ceiling Tiles with Full Automatic

This gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards, producing finished products suitable for ceiling tiles and partition wall panels.

• Automatic board feeding
• Pre dusting
• Coating
• Drying and conveying
• Aluminum foil unwinding
• Pneumatic lamination for film and gypsum board
• Cutting
• Conveying
• Automatic overturn
• Coating (second side)
• Drying and conveying
• PVC film unwinding
• Pneumatic lamination for film and gypsum board
• Cutting (manual/automatic)
• Drying and conveying
• Lengthwise cutting
• Horizontal cutting
• Belt conveyor output
• Autolift stacking conveying
• Stretch packing
• Conveying
• Lift (finished products stacking)

Automatic Gypsum Board Feeding Machine

• Cylinder pushes gypsum board from stack lift platform to conveyor roll
• Max. Load-bearing: 3000kg
• Stroke: 1500mm
• Min. Height: 620mm
• Max. Height: 2000mm
• Platform size: 1200*2400mm

Automatic Cutting Machine

• Two cutting systems: vertical/longitudinal and horizontal
• Equipped with dust collector system
• Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
• Cutting speed: 15m/min
• Cutting knives: vertical/longitudinal (3 blades), horizontal (5 blades)
• Overall power: 17.15KW

• Sheet thickness: 5-30mm
• Speed adjustment: Frequency conversion synchronous speed regulating
• Annual capacity: 2-4 million Sq.m
• Film material: PVC film, aluminum foils, decorative material
• Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
• Stacking mode: 10 layers (4 packages/layer)
• Cutting mode: lengthways (3 blades), horizontal (5 blades)
• Overall dimension: length 56000mm × width 9200mm
• Lamination mode: Double side (front and back simultaneously) or single side
