House Design PVC Film Gypsum Board Lamination Machine with Low Price

House Design PVC Film Gypsum Board Lamination Machine with Low Price

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-4 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

gypsum board feeding machine

gypsum board hurting machine

Product Description

House Design PVC Film Gypsum Board Lamination Machine

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-4 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Product Description

This gypsum board lamination machine efficiently laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels.

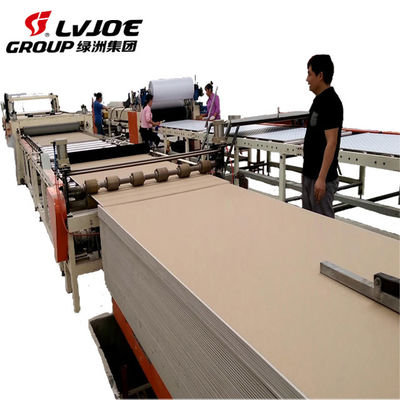

Production Process Flow

Automatic feeding → dust cleaning → PVC film/aluminum foil laminating → film cutting (manual/automatic) → conveying → vertical cutting (dust collecting) → horizontal cutting (dust collecting) → small board stacking → edge sealing → stretch packing → finished products stacking

Key Components

1. Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum boards from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm-2000mm
Platform size: 1200×2400mm

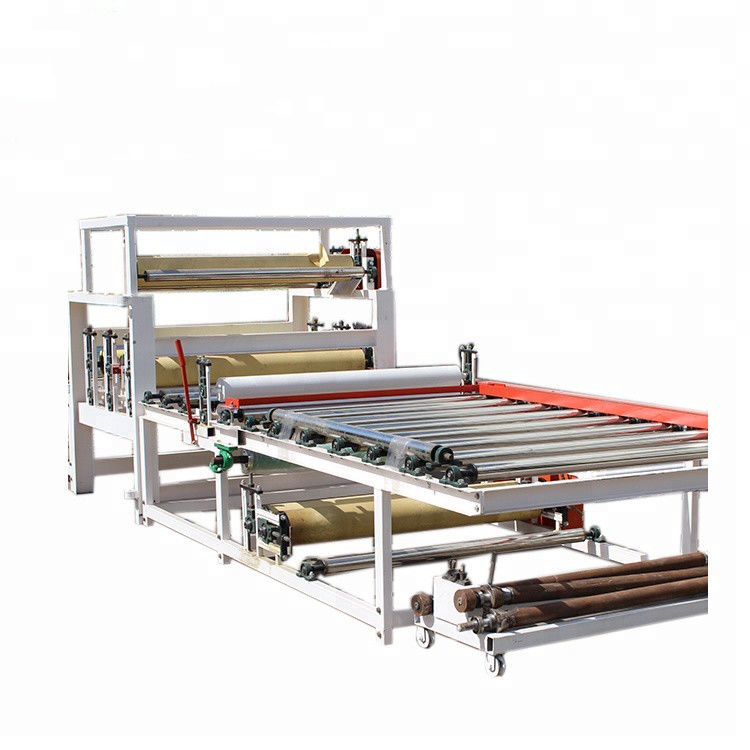

2. Double Sided Laminating Machine

Effective lamination width: ≤1300mm
Sheet thickness: 5-30mm
Lamination speed: 3-15m/min
Automatic board feeding and releasing

3. Automatic Cutting Machine

Vertical/longitudinal and horizontal cutting systems
Dust collector system included
Cuts 1.2×2.4m boards to 603×603mm/595×595mm sizes
Cutting speed: 15m/min
Vertical blades: 3; Horizontal blades: 5
Overall power: 17.15KW

Technical Parameters

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Overall dimension: 56000×9200mm
Lamination modes: Double side or single side options
