Gypsum Board Double Sides Laminating Machine for Ceiling Tiles with Full Automatic

Gypsum Board Double Sides Laminating Machine for Ceiling Tiles with Full Automatic

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Electric Control:

PLC System

Production Capacity:

2-4 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

gypsum board making machine

gypsum board feeding machine

Product Description

Gypsum Board Double Sides Laminating Machine for Ceiling Tiles with Full Automatic

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-4 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Product Description

This fully automatic gypsum board laminating machine applies fiber glass, paper, PVC film and aluminum foil to gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

The complete production process includes:

Automatic feeding
Dust cleaning
PVC film and aluminum foil laminating
Film cutting (manual/automatic options)
Conveying system
Vertical and horizontal cutting with dust collection
Small board stacking
Edge sealing
Stretch packing
Finished products stacking

Key Components

1. Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum boards from stack lift platform to conveyor rolls
Max. Load-bearing: 3000kg
Stroke: 1500mm
Height range: 620mm-2000mm
Platform size: 1200×2400mm

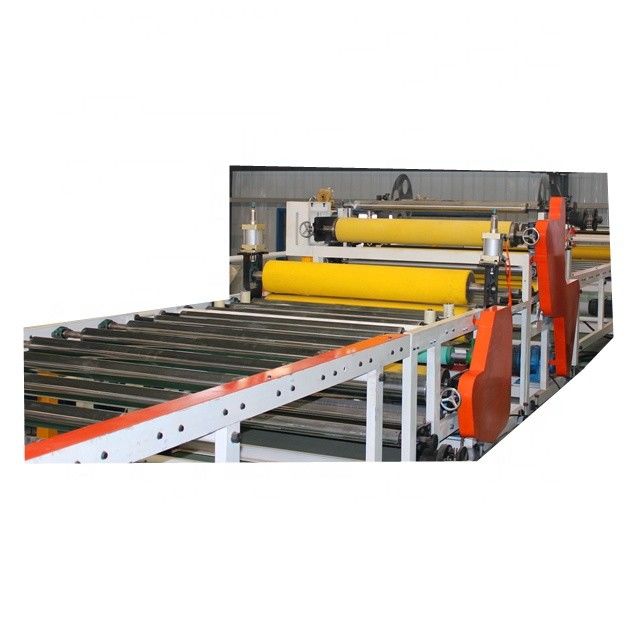

2. Double Sided Laminating Machine

Effective lamination width: ≤1300mm
Sheet thickness: 5-30mm
Lamination speed: 3-15m/min
Automatic board feeding and releasing

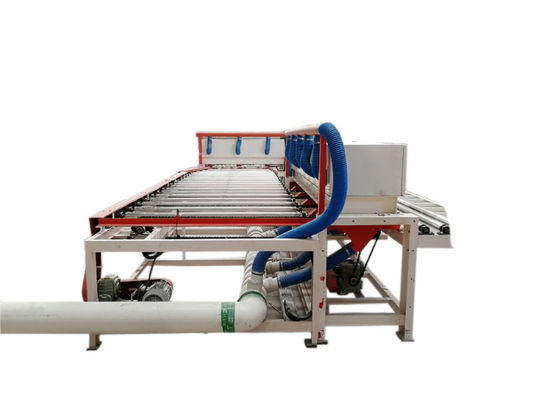

3. Automatic Cutting Machine

Vertical/longitudinal and horizontal cutting systems
Dust collector system included
Cuts 1.2×2.4m boards to 603×603mm/595×595mm sizes
Cutting speed: 15m/min
Vertical blades: 3; Horizontal blades: 5
Overall power: 17.15KW

Technical Parameters

Sheet thickness	5-30mm
Speed adjustment	Frequency conversion synchronous speed regulating
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode	10 layers (4 packages/layer)
Cutting mode	Lengthways: 3 blades, Horizontal: 5 blades
Overall dimension	Length: 56000mm, Width: 9200mm
Lamination mode	Double side or single side options
