Fully Automatic Lamination Machine
Created with Pixso.

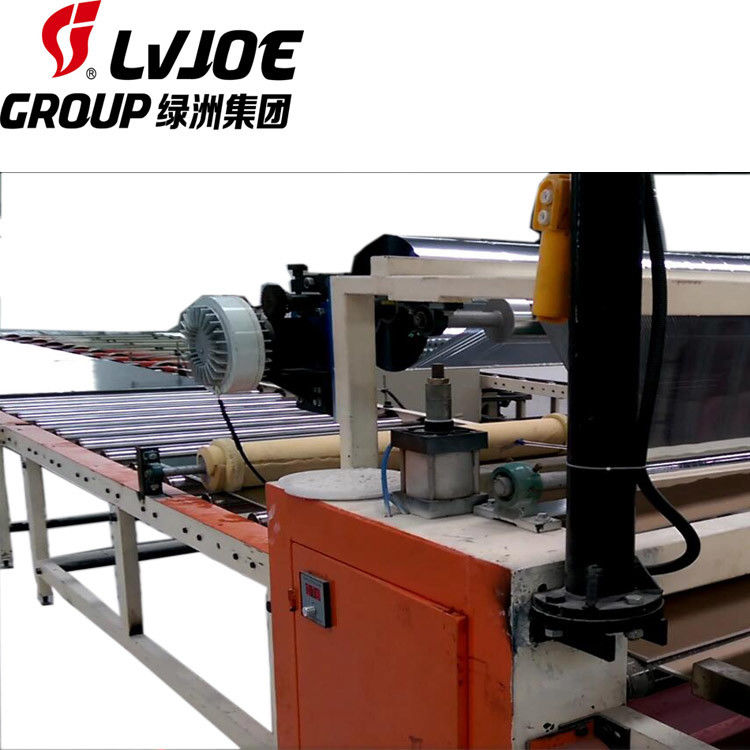

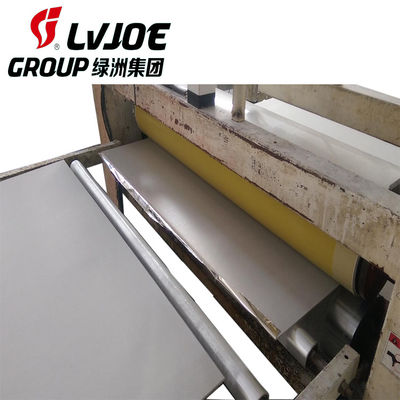

CE And ISO Certicication Plasterboard PVC Film Lamination Machine

Name

CE And ISO Certicication Plasterboard PVC Film Lamination Machine

Brand Name: LVJOE
Model Number: 1300FM01
MOQ: 1 Set
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei , China (Mainland)
Certification:
CE ISO 9001
Features:
Easy To Operate
Weight:
3-30t
Warranty:
1 Year
Driven Type:
PLC System
Dimension(L*W*H):
12600*1950*1600
Voltage:
380V
Packaging Details:
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Supply Ability:
50 Sets Per Year
Highlight:

heat shrink packing machine

,

full automatic shrink wrapping machine

Product Description
CE And ISO Certification Plasterboard PVC Film Lamination Machine
Product Specifications
Attribute Value
Weight 3-30t
Features Easy To Operate
Warranty 1 Year
Driven Type PLC System
Dimension (L*W*H) 12600*1950*1600
Voltage 380V
Technical Parameters
Model LV-130FM01
Max. laminating width 1300mm
Thickness of sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
Installed power 4kw
PVC Gypsum Ceiling Tile Sizes
595*595*8.0mm
603*603*8.0mm
600*1200*8.0mm
Applications
This machine laminates PVC film on the front side and aluminum film on the back side of paper-faced gypsum board. The resulting product features:
  • Waterproof and moisture proof
  • Flame resistant
  • Thermal insulation
  • Radiation proof
  • Anti-sagging and non-deformed
CE And ISO Certicication Plasterboard PVC Film Lamination Machine 0
Manufacturer Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD., established in 1998, specializes in plasterboard machinery manufacturing. The company holds:
  • HEBEI province municipal certification
  • High-tech enterprise certificate
  • National patent licenses
  • CE quality system certification
  • ISO9001 quality system certification
Additional Specifications

Brand: LVJOE

Size of finished board: Standard 603×603mm, 595×595mm (other sizes available)

Cutting speed: 15m/min

Cutting knife configuration: Three in portrait, five in lateral

Overall power: 17.15KW

James Yang
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD.
17th, NanYan Road Economical and Technological Development Zone, Shijiazhuang City, Hebei, China
Mobile: +8615832254694
WeChat: 15832254694
Email: lvjoe3@greensontech.com
