Full Automatic Gypsum Board Lamination Machine with Factory Low Price

Full Automatic Gypsum Board Lamination Machine with Factory Low Price

Brand Name:	LVJOE
Model Number:	1300FM
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei，China(Mainland)

Certification:

ISO CE

Finished Board Type:

PVC Laminated Gypsum Board

Effective Laminating:

1300mm

Production Capacity:

2-4 Million Sq.m/year

Speed:

2-15m/min (adjustable)

After-sales Service:

Engineers Available To Service

Warranty:

1 Year

Glue Type:

Water Glue For PVC Film

Dimension(L*W*H):

12600*1950*1600mm

Packaging Details:

Standard packing

Supply Ability:

10 lines per Year

Highlight:

full automatic shrink wrapping machine

automatic packing machine

Product Description

Full Automatic Gypsum Board Lamination Machine with Factory Low Price

Product Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Production Capacity	2-4 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film
Dimension(LWH)	1260019501600mm

Product Description

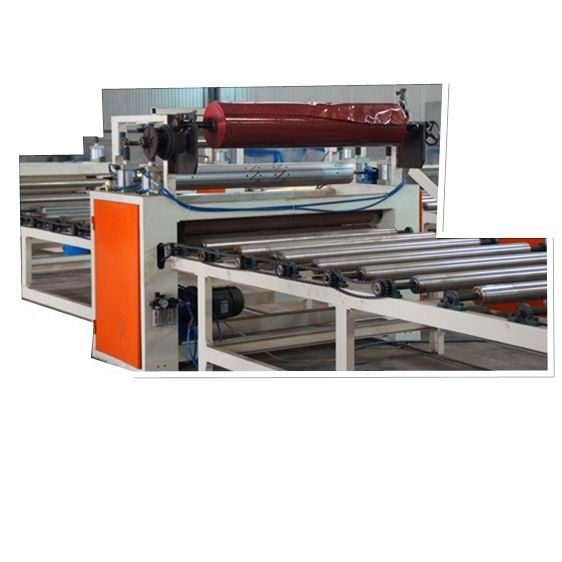

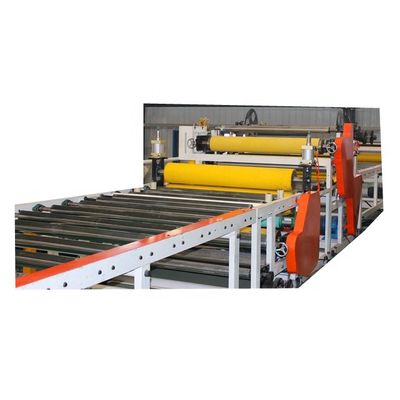

Fully Automatic Plasterboard or Ceiling Tiles Lamination Machine

This gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products can be used as ceiling tile and partition wall panel.

Double Sided Laminating Machine

Effective lamination width: ≤ 1300mm
Thickness of sheet: 5-30mm
Lamination speed: 3-15m/min
Board feeding and releasing mode: automatic

Automatic Cutting Machine

Two cutting systems: vertical/longitudinal cutting and horizontal cutting
Equipped with dust collector system
Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
Cutting speed: 15m/min
Cutting knives: vertical/longitudinal - 3 blades; horizontal - 5 blades
Overall power: 17.15KW

Technical Parameters

Sheet thickness	5-30mm
Speed adjustment	Frequency conversion synchronous speed regulating
Annual capacity	2-4 million Sq.m
Film material	PVC film, aluminum foils, decorative material, etc.
Board sheet material	PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode	10 layers (4 packages/layer)
Cutting mode	Lengthways: 3 blades, horizontal: 5 blades
Overall dimension	Length: 56000mm, width: 9200mm
Lamination mode	Double side: laminate front side and back at one time Single side: laminate one side at one time
