Gypsum Ceiling Tile Production Line
Created with Pixso.

PVC Film Coating Line / PVC Film for Gypsum Board Lamintion Machine

Name

PVC Film Coating Line / PVC Film for Gypsum Board Lamintion Machine

Brand Name: LVJOE
Model Number: 1300FM
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per Year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei，China(Mainland)
Certification:
ISO CE
Finished Board Type:
PVC Laminated Gypsum Board
Effective Laminating:
1300mm
Electric Control:
PLC System
Production Capacity:
2-4 Million Sq.m/year
Speed:
2-15m/min (adjustable)
After-sales Service:
Engineers Available To Service
Warranty:
1 Year
Glue Type:
Water Glue For PVC Film
Packaging Details:
Standard packing
Supply Ability:
10 lines per Year
Highlight:

gypsum board making machine

,

gypsum board feeding machine

Product Description

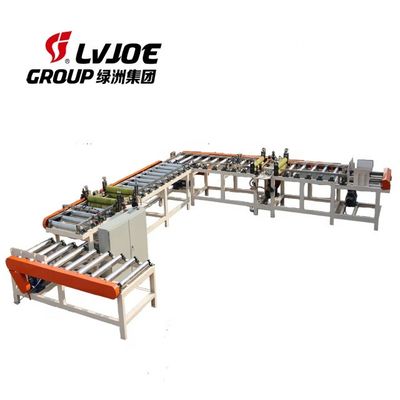

PVC Film Coating Line / PVC Film for Gypsum Board Lamination Machine
Product Overview

The gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil onto gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Attribute Specification
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Electric control PLC system
Production Capacity 2-4 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Machine Components
1. Automatic Gypsum Board Feeding Machine
  • Cylinder pushes gypsum boards from stack lift platform to conveyor roll
  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Min. Height: 620mm
  • Max. Height: 2000mm
  • Platform size: 1200*2400mm

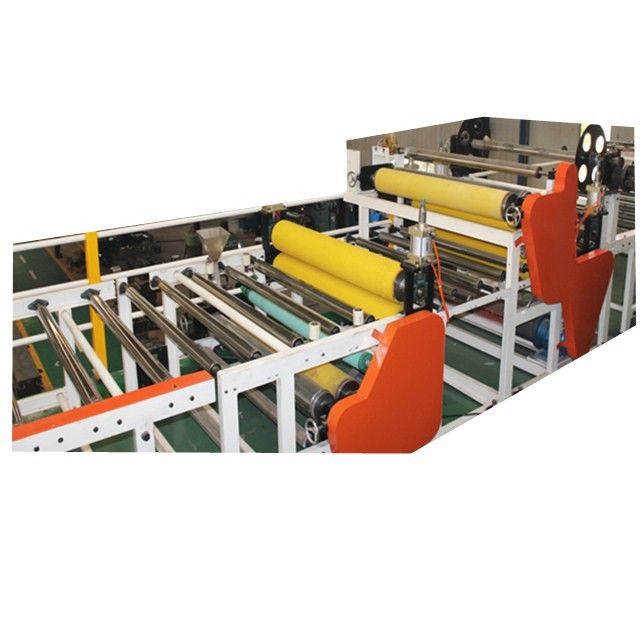

2. Double Sided Laminating Machine
  • Effective lamination width: ≤ 1300mm
  • Thickness of sheet: 5-30mm
  • Lamination speed: 3-15m/min
  • Board feeding and releasing mode: automatic
3. Automatic Cutting Machine
  • Two cutting systems: vertical/longitudinal and horizontal
  • Equipped with dust collector system
  • Cuts 1.2*2.4m boards to 603*603mm/595*595mm sizes
  • Cutting speed: 15m/min
  • Cutting knives: vertical/longitudinal: 3 blades; horizontal: 5 blades
  • Overall power: 17.15KW
4. Automatic Edge Sealing Machine
  • PLC controlled for high speed and output
  • Produces tight and firm edging
  • Sheet size: 600*600mm
  • Production speed: 25 pieces/min
  • Installed power: 5 KW
5. Automatic Thermoplastic Packing Machine
  • For packing PVC gypsum board finished products
  • Creates tight and smooth packages
  • Electric source: 380V
  • Power: 23KW
  • Speed: 500 packs/hour
  • Standard packing temperature: 160-180℃
  • Package material: PE heat shrinking film
Technical Specifications
Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Film material: PVC film, aluminum foils, decorative material
Board sheet material: PVC baseboard, gypsum board, wood board
Stacking mode: 10 layers (4 packages/layer)
Cutting mode: lengthways: 3 blades, horizontal: 5 blades
Overall dimension: 56000mm × 9200mm
Lamination mode: Double side or single side options
