Fully Automatic Lamination Machine
Created with Pixso.

New Condition and Different Type Ceiling Tile Lamination Machine

Name

New Condition and Different Type Ceiling Tile Lamination Machine

Brand Name: LVJOE
Model Number: FM1300
MOQ: 1 line
Price: US $20000-200000
Payment Terms: L/C, T/T
Supply Ability: 10 lines per year
Detail Information
Product Description
Detail Information
Place of Origin:
Hebei,China(mainland)
Certification:
ISO CE
Features:
High Automatic
Condition:
New
Dimension(L*W*H):
12600*1950*1600mm
Power:
30KW To 100KW
Experience:
15 Years
Voltage:
380V, 50HZ
After-sales Service:
Engineers Available To Service Overseas
Max Speed Size:
1300mm
Packaging Details:
standard package
Supply Ability:
10 lines per year
Highlight:

full automatic shrink wrapping machine

,

automatic packing machine

Product Description

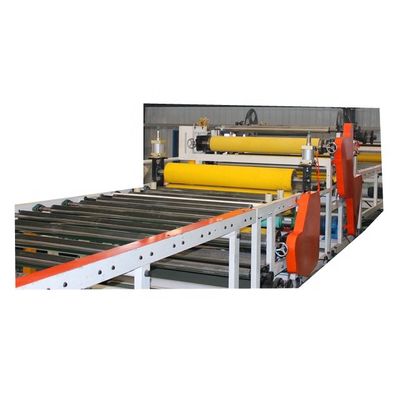

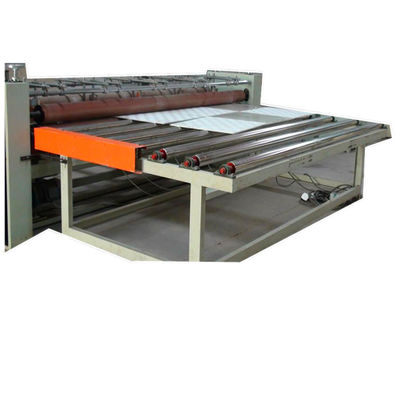

New Condition Ceiling Tile Lamination Machine
Product Specifications
Condition New
Dimensions (L×W×H) 12600×1950×1600mm
Features High automation
Power 30KW to 100KW
Voltage 380V, 50HZ
Max Speed Size 1300mm
After-sales Service Engineers available for overseas service
Product Description

The PVC gypsum ceiling tile lamination machine produces environmentally friendly, lightweight ceiling boards with fireproof, waterproof, and corrosion-resistant properties. These decorative boards feature a PVC surface layer and aluminum foil backing, offering customizable patterns for various commercial and residential applications.

Standard Ceiling Tile Sizes
Dimensions (mm)
595×595×8.0
603×603×8.0
600×1200×8.0
Lamination Process Flow
  1. Automatic feeding
  2. Dust cleaning
  3. PVC film and aluminum foil laminating
  4. Film cutting (manual/automatic)
  5. Conveying
  6. Vertical cutting with dust collection
  7. Horizontal cutting with dust collection
  8. Small board stacking
  9. Edge sealing
  10. Stretch packing
  11. Finished products stacking
Technical Parameters
Effective Laminating Width 1300mm
Sheet Thickness 5-30mm
Laminating Speed 15m/min
Speed Adjustment Frequency conversion synchronous speed regulating
Electrical Control PLC
Annual Capacity 2-4 million Sq.m
Comprehensive Service Package
  • Professional installation & debugging teams available worldwide
  • One-year equipment warranty with year-round spare parts supply
  • Continuous technical support and problem resolution
  • Assistance with import/export procedures and consignment
  • Production engineers available for on-site machine operation support
Contact Information

WeChat/WhatsApp: 17732172215

Skype: 16630111157

Email: 17732172215@sina.cn
