High Standard Gypsum Board Lamination Machine by Factory Price

High Standard Gypsum Board Lamination Machine by Factory Price

Brand Name:	LVJOE
Model Number:	FM1300
MOQ:	1 line
Price:	US $20000-200000
Payment Terms:	L/C, T/T
Supply Ability:	10 lines per year

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China(mainland)

Certification:

ISO CE

Application:

Laminating The Gypsum Board

Electric Control:

PLC System

Dimension(L*W*H):

12600*1950*1600mm

Effective Laminating:

1300mm

Speed:

2-15m/min (adjustable)

Warranty:

1 Year

After-sales Service:

Engineers Available To Service Overseas

Power:

100KW

Packaging Details:

Standard package

Supply Ability:

10 lines per year

Highlight:

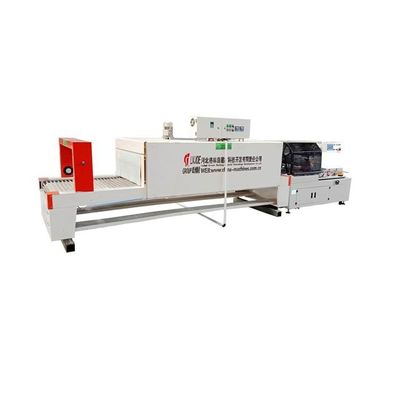

full automatic shrink wrapping machine

automatic packing machine

Product Description

High Standard Gypsum Board Lamination Machine by Factory Price

Product Specifications

Attribute	Value
Application	Laminating the gypsum board
Electric Control	PLC system
Dimension (L×W×H)	12600×1950×1600mm
Effective laminating	1300mm
Speed	2-15m/min (adjustable)
Warranty	1 year
After-sales service	Engineers available to service overseas
Power	100KW

Product Description

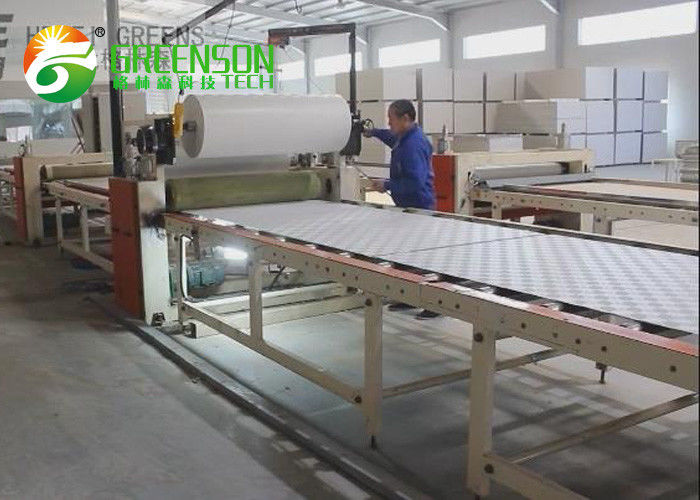

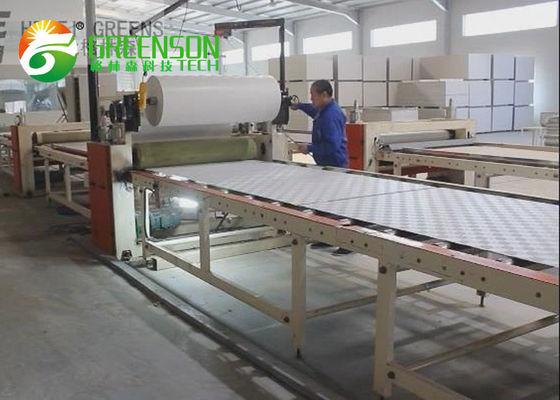

The gypsum board lamination machine is designed for laminating fiber glass, paper, PVC film and aluminum foil onto gypsum boards. The finished products are ideal for ceiling tiles and partition wall panels.

Production Flowchart

Automatic feeding
Dust cleaning
PVC film and aluminum foil laminating
Film cutting (manual/automatic)
Conveying
Vertical cutting (dust collecting)
Horizontal cutting (dust collecting)
Small board stacking
Edge sealing
Stretch packing
Finished products stacking

PVC Gypsum Ceiling Tile Sizes

Size (mm)
595×595×8.0
603×603×8.0
600×1200×8.0

Technical Parameters

Model	LV-1300SFM01	LV-1300SFM02	LV-1300SFM03
Max. laminating width	1300mm
Thickness of sheet	5-30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating
Raw materials	Gypsum board, PVC film, Aluminum foil, glue
After-sales service	Engineers available to service overseas; field installation, commission and technology guide
